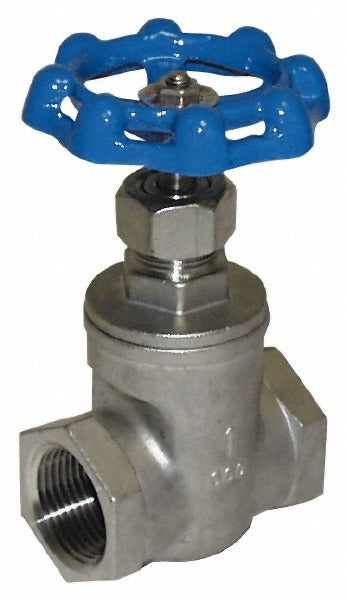

Legend Valve 113-407 Gate Valve 1-1/2 Inch Threaded Ss

Product Description

The LEGEND VALVE 113-407 is a non-rising stem gate valve designed for isolation service in commercial and industrial piping systems. Built with a stainless steel body and solid wedge disc, it handles working pressures up to 600 WOG (water, oil, gas) and 125 WSP (working steam pressure). The 1-1/2 inch threaded end connection makes it compatible with standard NPT piping layouts. Licensed plumbers and pipefitters install this type of valve where a full-bore shutoff is required and where overhead stem travel would be restricted. The non-rising stem design keeps the stem retracted within the bonnet during operation, making it well-suited for tight spaces or low-clearance installations.

This gate valve is appropriate for use in residential, commercial, and light industrial piping systems carrying water, oil, or gas within its rated pressure limits. The threaded connection suits retrofit and new-construction applications where soldering or flanged connections are not practical. Typical install locations include mechanical rooms, utility lines, irrigation supply, and process piping where a reliable full-port shutoff is needed. The stainless steel body provides corrosion resistance in wet or chemically active environments.

Key Features

• Non-rising stem design for low-clearance and enclosed installations
• Rated 600 WOG for use on water, oil, and gas lines
• Rated 125 WSP for steam service applications
• Solid wedge disc provides positive shutoff and low leak-by
• Stainless steel body resists corrosion in demanding service environments
• 1-1/2 inch threaded (NPT) end connection for standard pipe fitup

Compatibility

Designed as an OEM-style replacement or new-installation gate valve for 1-1/2 inch threaded NPT piping systems in water, oil, gas, and steam service within rated pressure limits.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and the IPC. Shut off system pressure and drain the line before removing any existing valve or making new connections. Apply appropriate thread sealant or PTFE tape to NPT threads before assembly, and tighten to fitting manufacturer specifications without over-torquing the stainless steel body. Verify system pressure does not exceed the valve pressure rating before returning the line to service.
