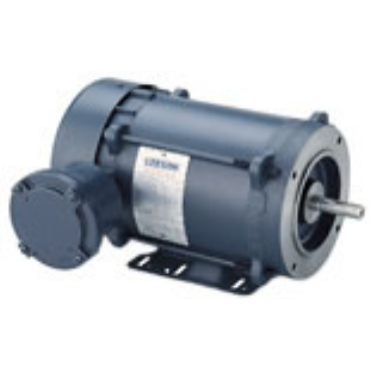

Leeson 116607.00 AC Single Phase Explosion Proof Motors

Product Description

The Leeson 116607.00 is an AC single phase explosion proof motor designed for safety and durability. This motor operates at one-third horsepower and a speed of one thousand one hundred forty revolutions per minute. It is built with a rigid mount frame and is suitable for various applications.

• Explosion Proof Design
• Meets UL and CSA Safety Standards
• Automatic Overload Protection Included

Product Highlights

This motor is perfect for environments where flammable gases or vapors may be present. The robust construction and explosion-proof features ensure it stands up to demanding conditions.

Product Information

Standard Information

• Brand: Leeson
• MPN: 116607.00

Technical Specifications

• HP: 1/3
• Voltage Rating: 115/208-230 V
• Full Load Amps: 7.8/3.6-3.9
• Poles: 6
• Enclosure Designation: Explosion Proof Fan Cooled
• Frame: 56
• Mounting: Rigid
• Frame Material: Rolled Steel
• Phase: Single Phase
• Hz: 60
• RPM: 1140
• Service Factor: 1
• Weight: 45.0 LB
• Model No.: 116607
• C Dimension: 13.94 in
