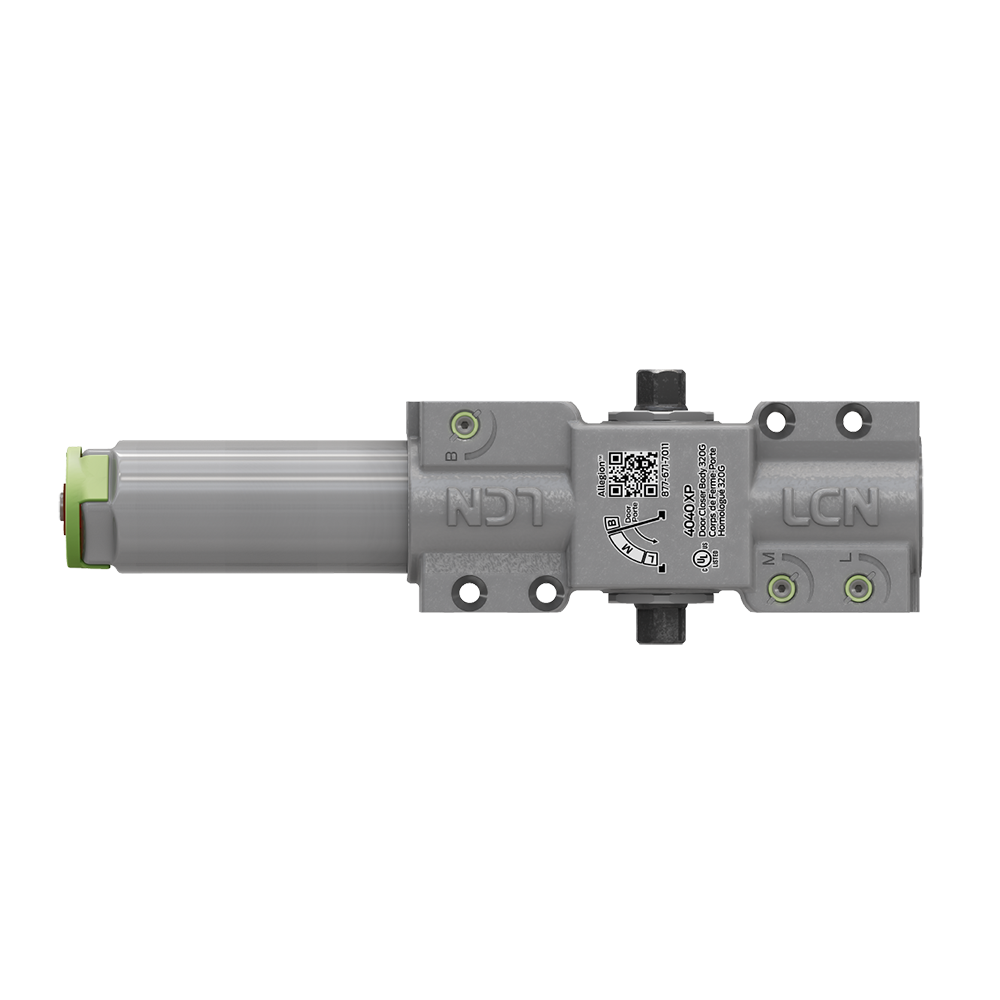

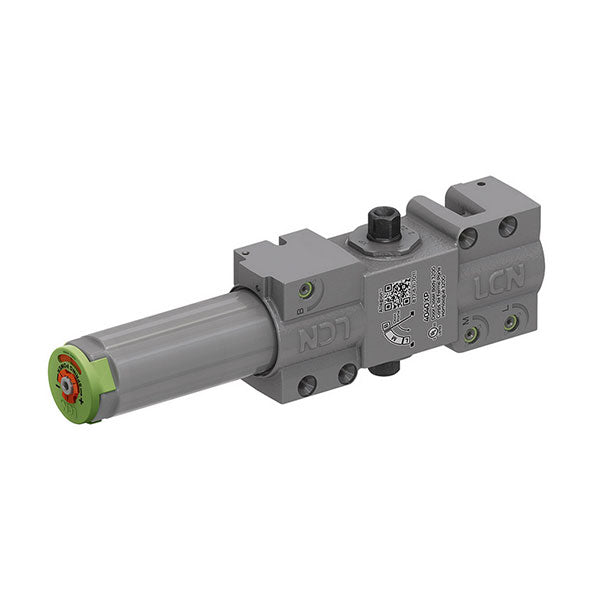

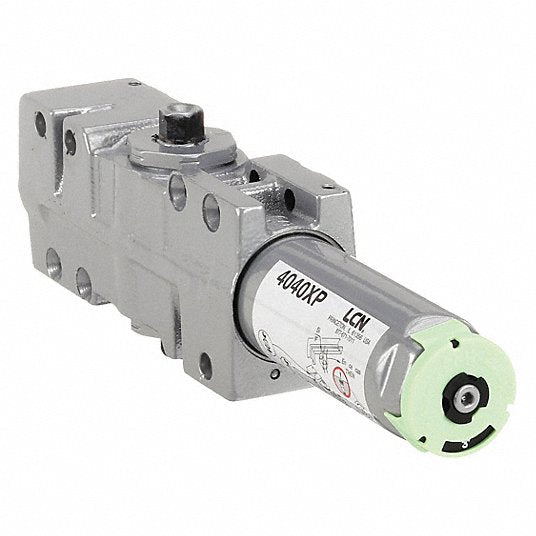

LCN 4040XP-3071-AL Cylinder Assembly Adjustable Spring Size 1-6

Product Description

The LCN CLOSERS 4040XP-3071-AL is a cylinder assembly designed for the 4040XP series. This product features an adjustable spring size range of 1 to 6, allowing customization for door closers. The unit includes the LCN Green Dial, aiding in easy adjustments. It is suitable for high-traffic areas, ensuring durability and performance in demanding environments.

• Adjustable spring size from 1 to 6
• Non-handed design fits various applications
• Meets ANSI/BHMA A156.4 Grade 1 standards

Product Highlights

This closer is ideal for a range of door types and usage scenarios, providing reliable operation and compliance with industry standards.

Product Information

Standard Information

• Brand: LCN
• Part Type: Closer Body

Technical Specifications

• Handing: Non-Handed
• Overall Length: 12-1/4 inches
• Body Construction: Cast Iron Body
• Fluid: All Weather Fluid
• Spring Type: Adjustable
• Compatible with Series: 4040XP
• ADA Compliance: Meets ADA requirements
• UL and cUL Listing: Listed for self-closing doors without hold-open
