LAING Laing E1-BCANCT1W-06 Autocirc Pump 14 W Replacement LHB08100092
LAING Laing E1-BCANCT1W-06 Autocirc Pump 14 W Replacement LHB08100092

Laing E1-BCANCT1W-06 Autocirc Pump 14 W Replacement LHB08100092

Brand: LAING
SKU: E1-BCANCT1W-06
Availability: Out Of Stock
$743.26
$743.26
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

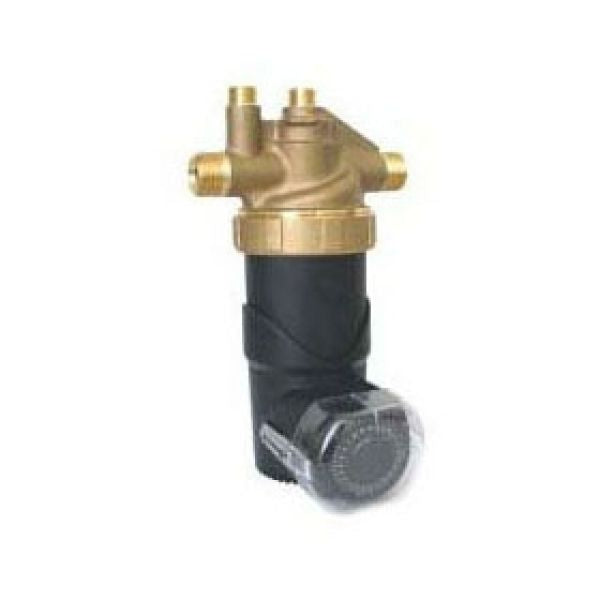

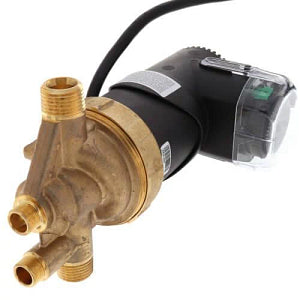

The Laing E1-BCANCT1W-06 Autocirc Pump is suitable for potable water systems. The pump uses electronically commutated permanent magnet motor technology, designed to operate only when hot water is needed. It is ideal for retrofit installations, placed under the sink furthest from the water heater.

  • Lead-Free
  • Quiet operation
  • No need for a return line

Product Highlights

This pump efficiently provides hot water on demand, reducing wait times and conserving energy.

Product Information

Standard Information

  • Product ID: 290858
  • Manufacturer: ITT Corp.
Technical Specifications
MPN
E1-BCANCT1W-06
Manufacturer Part Number
LHB08100092
Applicable Standard
ETL (Canada and US), NSF
Casing Material
Brass
Discharge Size
1/2 inch-14 TPI
End Connection
1/2 inch-14 TPI Thread x 1/2 inch-14 TPI Thread
Impeller Material
Nylon/Polyphenylene Oxide
Inclusions Features
EPDM O-Ring, Carbon/Ceramic Bearing, Lead-Free Brass Pump Housing
Input Supply Rating
115 VAC at 60 Hz
Overall Dimensions
4-3/8 inch L x 4-13/32 inch W x 7-7/16 inch H
Power Rating
14 W
Pressure Rating
145 PSI
Shaft Seal Details
Mechanical Seal
Speed Rating
3450 RPM
Suction Size
1/2 inch-14 TPI
Temperature Rating
203 Deg F
Type
Close Coupled, Horizontal/Vertical Mount
Voltage
115 VAC
