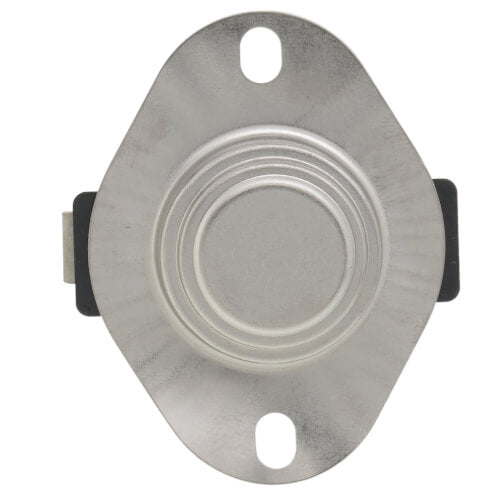

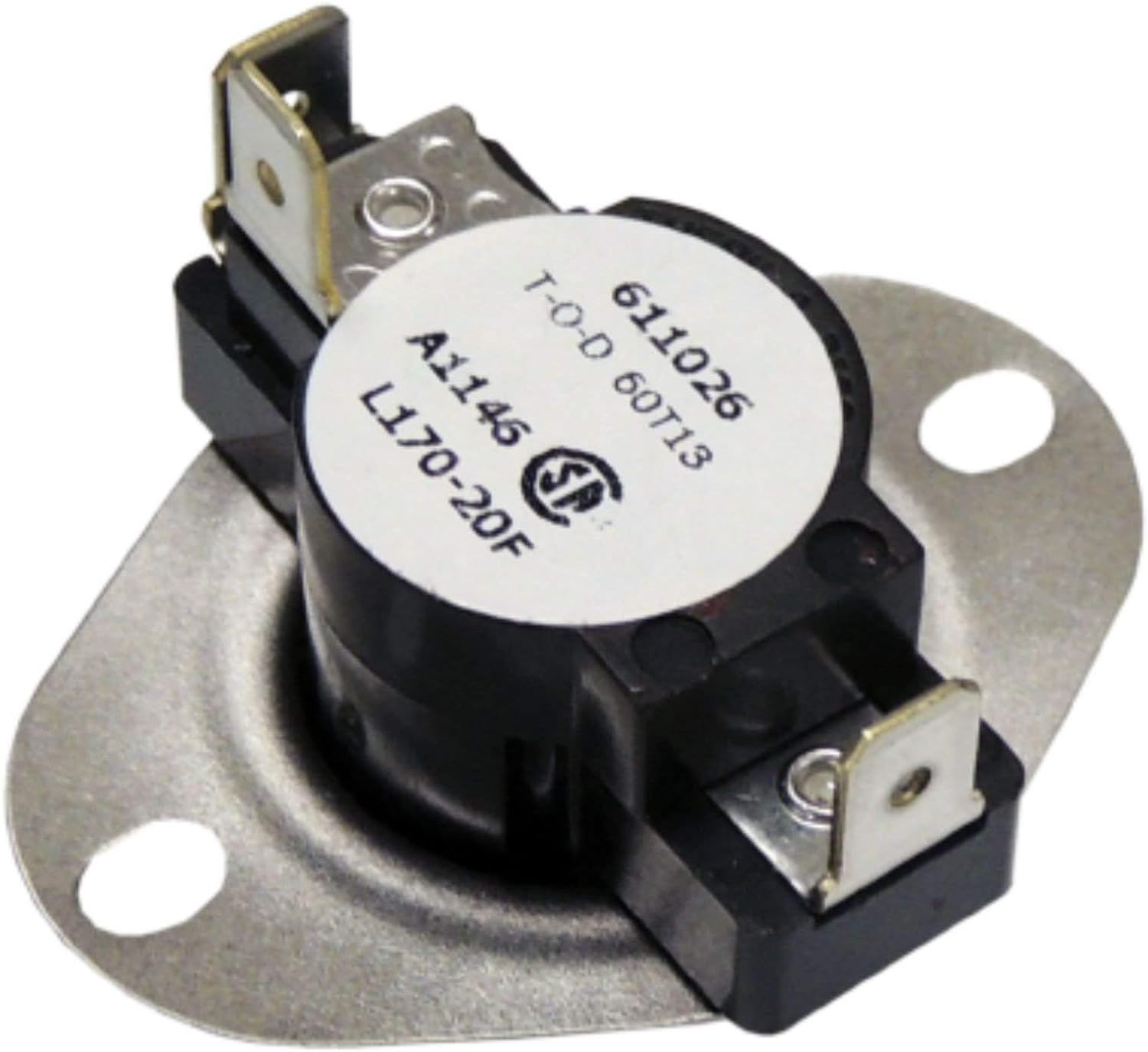

Supco LD170 SPDT Thermostat 240 Volts L170-20F Replacement

Product Description

The Supco LD170 thermostat features a snap-disc design with SPDT switch type, primarily aimed at regulating temperature for various HVAC and appliance applications. This robust unit operates with a single-pole double-throw mechanism, ensuring reliable performance across a temperature differential of 20 degrees Fahrenheit.

• Robust snap-action mechanism ensures reliable operation
• Operates within a broad temperature range from -40 to 350 degrees Fahrenheit
• Quick disconnect terminals facilitate easy installation

Product Highlights

With a versatile voltage rating of 120/240 Volts AC, the Supco LD170 offers a full load amperage of 10 amps at 120 Volts and 5 amps at 240 Volts, alongside a pilot duty power rating of 125 Volt Amps. It’s designed to open on temperature rise, ideal for applications in home laundry dryers, fan and limit controls.

Product Information

Standard Information

• Brand: Supco
• Model Name: LD170
• Switch Type: SPDT

Technical Specifications

• Voltage Rating: 120/240 Volts AC
• Current Rating: 10 Amp at 120 Volts, 5 Amp at 240 Volts
• Temperature Rating: 170 Degrees F (Open), 150 Degrees F (Close)
• Power Rating: 125 Volt Amp
