Kyocera TCS01223 Ceramic Turning Insert A66N Grade

Product Description

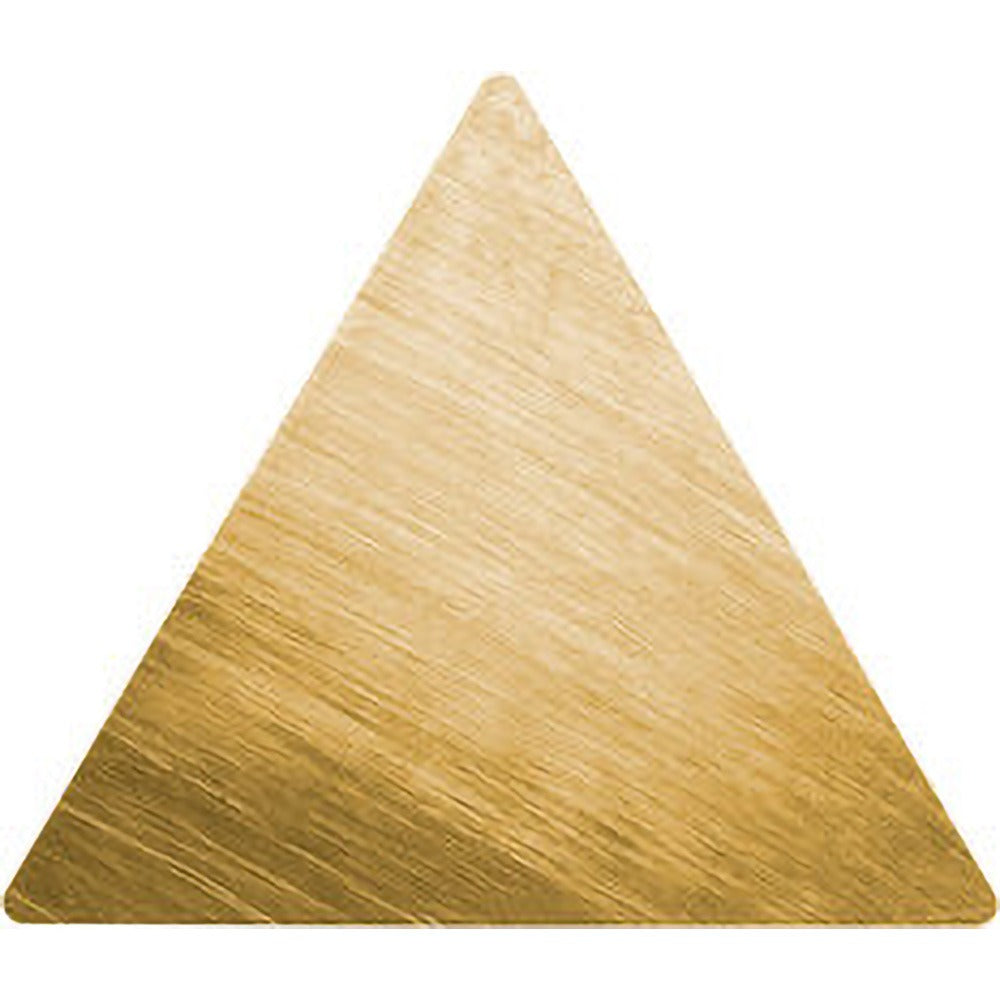

The KYOCERA TCS01223 is a triangular ceramic turning insert designed for high-speed machining of hard and difficult-to-cut materials. Built to ISO and ANSI standards under the ISOI series, this insert features an aluminum oxide (Al2O3) and titanium carbonitride (TiC/TiN) PVD coating applied over a ceramic substrate. It carries a TPG style with a neutral hand orientation, a 1/4 inch inscribed circle, and a 1/32 inch corner radius. With three usable cutting edges and positive rake geometry, it delivers consistent performance in external turning, facing, boring, and chamfering operations.

This insert is suited for hard turning applications in industrial and precision machining environments. The A66N manufacturer grade and H01/H10 material grade designations target hardened steels and similarly hard workpiece materials. Typical use cases include finish and semi-finish turning operations where ceramic grades outperform carbide in heat resistance and wear life. The insert measures 11 millimeters (0.8668 inches) in length with a 1/8 inch thickness and is held in place using a clamp-style toolholder. It is compatible with multi-use applications including boring, chamfering, external turning, and facing.

Key Features

• Al2O3 and TiC/TiN PVD-coated ceramic substrate for extended tool life on hard materials
• Triangular insert shape (60-degree included angle) provides three cutting edges per insert
• Neutral hand orientation with positive rake geometry reduces cutting forces
• 1/32 inch corner radius suits finish and semi-finish turning passes
• Maximum depth of cut of 0.2889 inches supports a range of material removal rates
• Multi-use capable: boring, chamfering, external turning, and facing

Compatibility

Designed as an OEM-style replacement for TPG-style triangular insert seats using clamp-style toolholders conforming to ANSI and ISO standards for the ISOI insert series. Industry standard number TPG222T00320A66N applies. Verify toolholder clearance code P and tolerance code G compatibility before installation.

Installation Notes

Installation is performed by machinists or tooling technicians using a clamp-style toolholder rated for TPG insert geometry. The machine spindle must be brought to a full stop and the tool assembly must be secured before seating or indexing the insert. Inspect the insert pocket and clamping components for wear or debris before installing a new insert edge. Follow the toolholder manufacturer torque guidelines for clamping hardware; do not over-torque the clamp screw.
