Kyocera OTM86116 Indexable Chamfer End Mill

Product Description

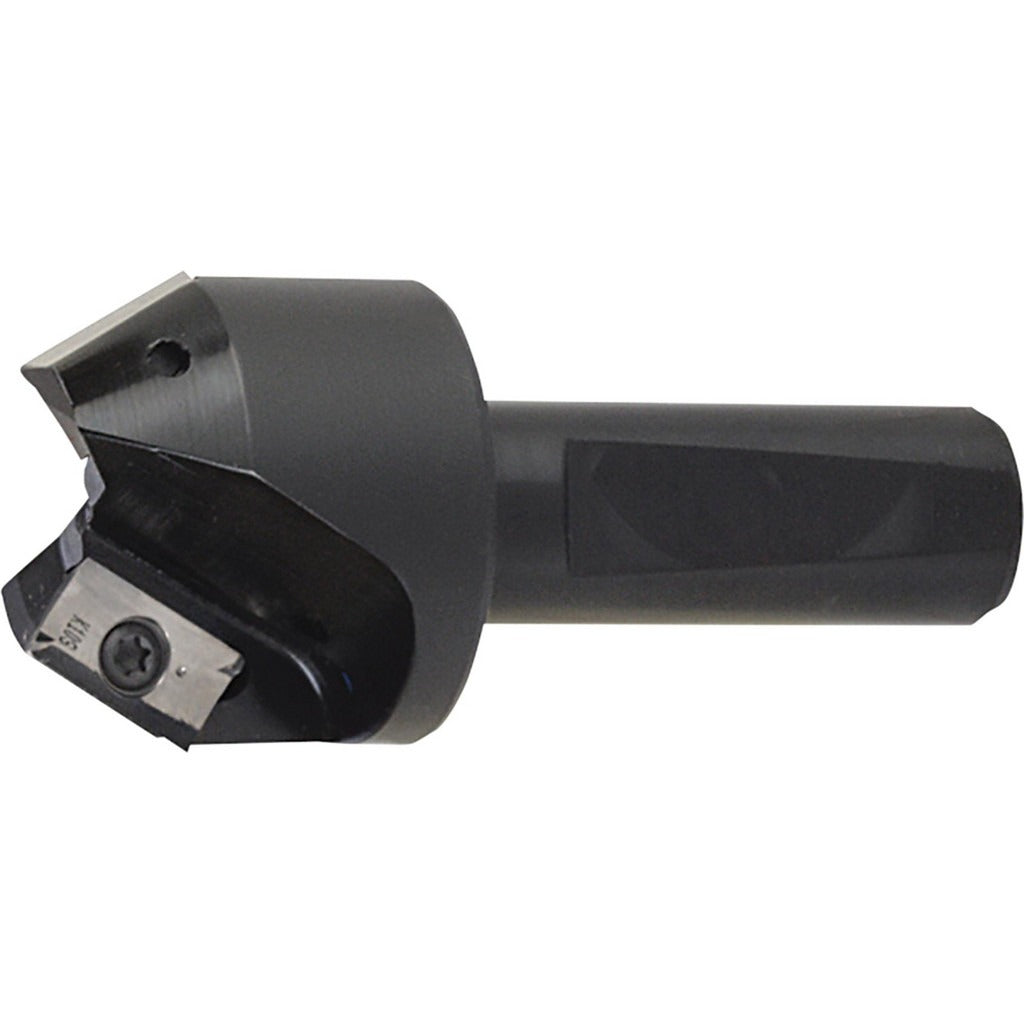

The KYOCERA OTM86116 is an indexable chamfer end mill designed for facing operations in metal cutting applications. It features a 45-degree lead angle and accepts two APET 1604 screw-held inserts, allowing for fast insert changes without removing the toolholder from the machine. The cutter covers a cutting diameter range of 0.8 to 1.65 inches with a maximum depth of cut of 0.44 inches. The tool measures 3.25 inches in overall length and uses a CM-style toolholder interface with a 0.75-inch whistle notch shank. This tool is typically set up and operated by machinists and CNC technicians working in production or job shop environments.

The OTM86116 is suited for facing and chamfering operations on milling machines and machining centers. The right-hand cutting direction and whistle notch shank make it compatible with standard vertical and horizontal milling setups. With a head length of 1.35 inches and a shank length of 2.031 inches, it fits typical toolholder reach requirements in production milling. Coolant-through capability is not included, so external or flood coolant delivery is the standard approach for chip evacuation and heat management.

Key Features

• 45-degree lead angle for chamfering and facing operations
• Accepts 2 APET 1604 inserts secured by screw-holding method for quick changes
• Cutting diameter range of 0.8 to 1.65 inches covers a wide variety of workpiece sizes
• Maximum depth of cut of 0.44 inches suitable for standard facing passes
• Whistle notch shank provides positive drive and secure clamping in CM-style toolholders
• Right-hand cutting direction for use on conventional right-hand spindle machines

Compatibility

Designed for use with CM-style toolholders accepting a 0.75-inch whistle notch shank. Compatible insert style is APET 1604. Manufacturer catalog number CM 0800-45-AL may be used to cross-reference equivalent tooling configurations.

Installation Notes

Installation and setup should be performed by a qualified machinist or CNC technician. Ensure the machine spindle is fully stopped and locked out before mounting or removing the toolholder. Confirm insert seating and screw torque per the insert manufacturer guidelines before initiating a cut. Verify shank clamping force meets the toolholder specification to prevent pullout during facing passes.
