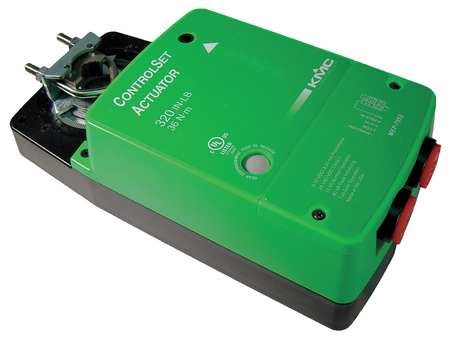

KMC CONTROLS MEP-7852 Electric Actuator 320 in-lb Proportional

Product Description

The KMC Controls MEP-7852 is an electric actuator designed for precise and reliable operation. It offers a force output of 320 in-lbs and operates on a 24 V signal within a proportional control signal range of 2-10 VDC. This device is engineered for fail-safe operation, ensuring optimal performance even in power outages.

• Capable of handling loads up to 320 in-lbs with a stroke degree of 0-95.
• Operates in temperatures ranging from -22 to 131 degrees Fahrenheit.
• Direct mount capabilities simplify installation on a variety of damper and valve sizes.

Product Highlights

This actuator is equipped with a non-rotation bracket to prevent lateral movement, enhancing durability and reliability. It supports a voltage feedback option that correlates to the actuator's position, providing precise control.

Product Information

Standard Information

• Manufactured by: KMC Controls
• MPN: MEP-7852

Technical Specifications

• Power Input: 24V AC, Class 2
• Control Signal: Proportional 2 to 10 VDC
• Force Output: 320 in-lb
• Operational Temperature Range: -22 to 131 F
• Feedback Output: 1-5 or 2-10 VDC
