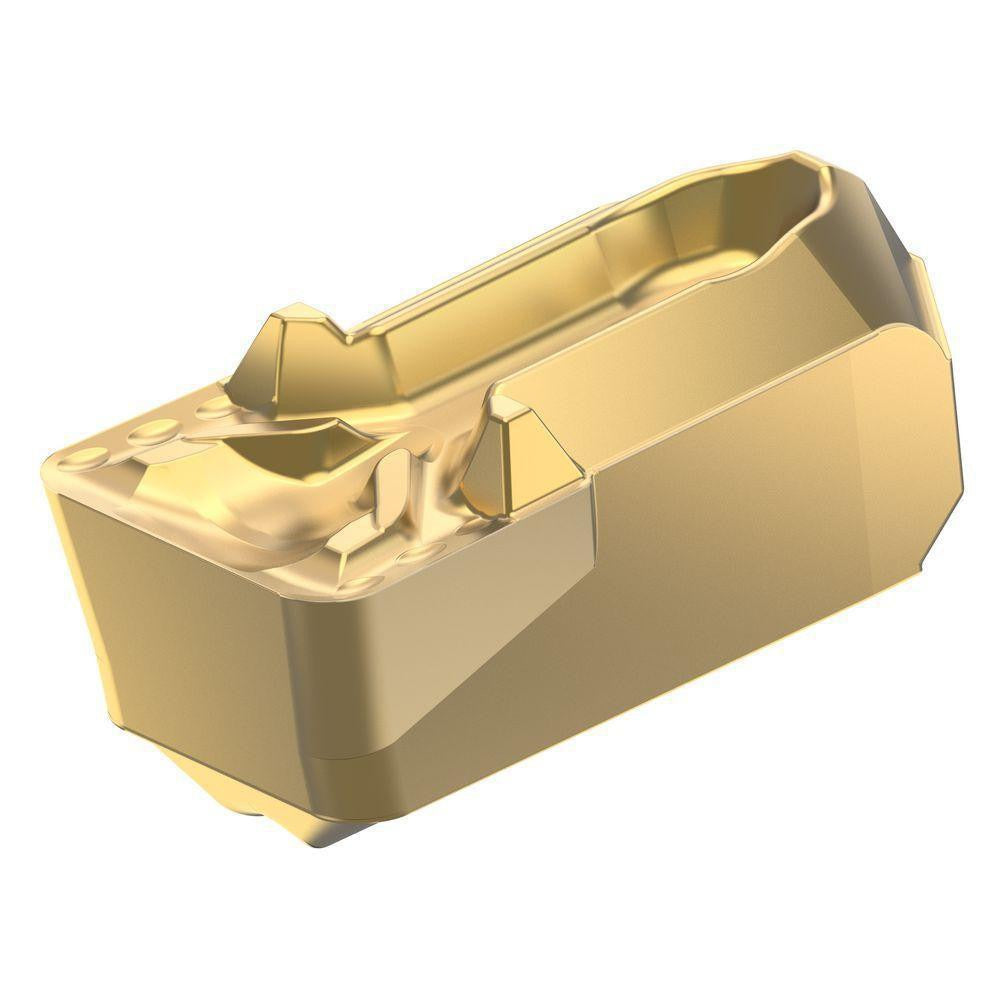

Kennametal 7096880 Grooving Insert Carbide 0.202 in

Product Description

The KENNAMETAL 7096880 is a carbide grooving insert designed for precision external and internal grooving operations on CNC lathes and turning centers. Part of the Beyond Evolution series, it features a neutral hand orientation and a 0.202 inch (5.13 mm) cutting width, making it suitable for consistent groove width and depth control in production turning environments. The insert uses an AlTiN coating and carries a KCU10B manufacturer grade, providing elevated wear resistance and thermal stability at elevated cutting speeds. It is installed via a clamp-style holding method and is classified as a multi-use tool for versatile grooving applications.

This insert is intended for use in turning operations where accurate groove dimensions are critical, such as snap ring grooves, oil grooves, and part separation cuts. The GUP chip breaker geometry promotes controlled chip flow in a variety of workpiece materials. The positive rake angle reduces cutting forces, making this insert well suited for finishing and light roughing passes on ferrous and non-ferrous stock. It is typically used by CNC machinists and tool room operators in both job shop and production environments.

Key Features

• Carbide substrate with AlTiN coating for extended tool life and thermal resistance
• KCU10B grade optimized for consistent performance across a range of workpiece materials
• 0.202 inch (5.13 mm) cutting width with a 0.0310 inch (0.80 mm) corner radius for controlled groove geometry
• GUP chip breaker geometry for predictable chip control during grooving passes
• Positive rake angle reduces cutting forces for smoother finishing cuts
• Clamp-style insert holding for secure, repeatable positioning in compatible toolholders
• Multi-use designation supports both grooving and related turning applications

Compatibility

Designed for use with EG-U-GUP-Metric series toolholders accepting Insert Size Code 5. Verify toolholder compatibility with the insert style designation before installation.

Installation Notes

Installation should be performed by a qualified CNC machinist or tooling technician with the machine spindle fully stopped and locked out per OSHA lockout/tagout procedures. Use the appropriate torx or clamp screw driver as specified by the toolholder manufacturer to secure the clamp without over-torquing the seat. Inspect the insert pocket and clamp for wear or damage before seating a new insert. Do not attempt to reseat or adjust the insert while the machine is running.
