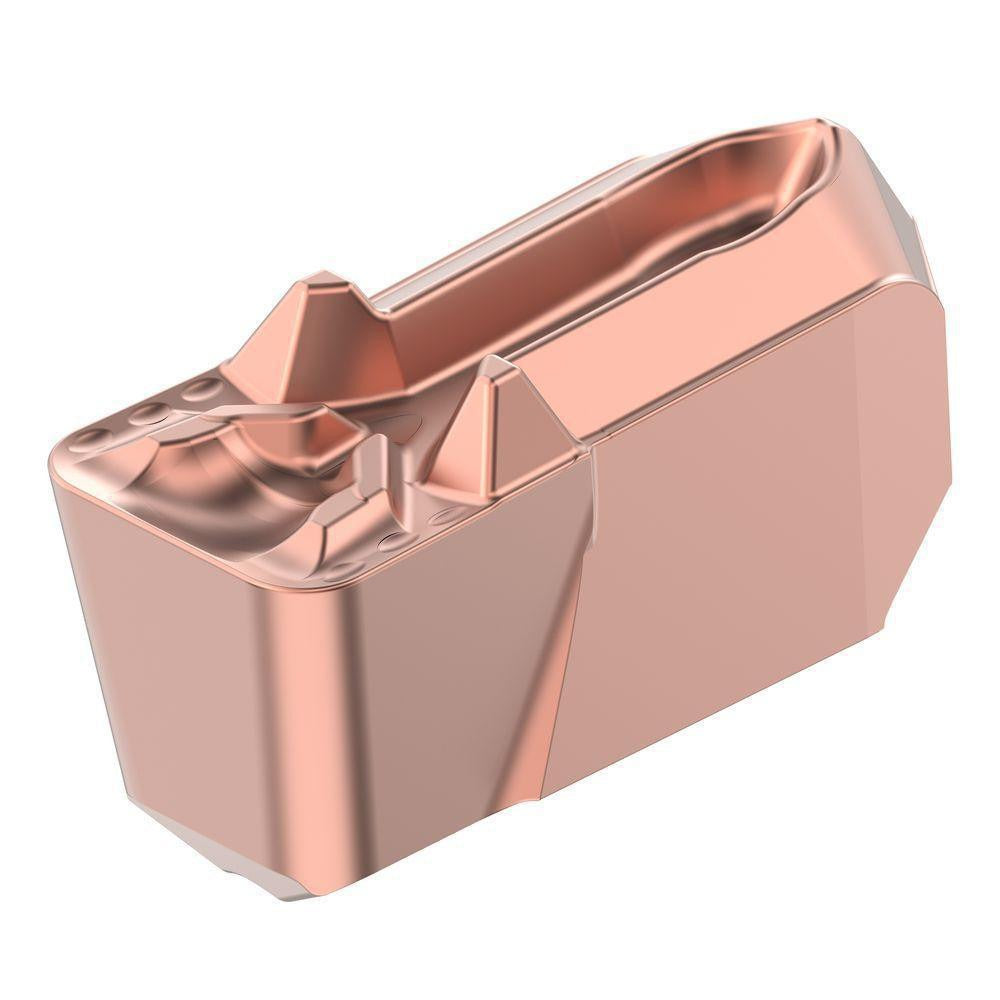

Kennametal 7096848 Grooving Insert 0.1575 in Carbide

Product Description

The KENNAMETAL 7096848 is a carbide grooving insert designed for external grooving and parting operations on CNC lathes and turning centers. Part of the Beyond Evolution series, this insert features a 0.1575 inch (4.00 mm) cutting width and a neutral hand orientation, making it suitable for straight-in grooving applications. The KCU10B grade substrate is coated with AlTiN for heat resistance and extended tool life in demanding cutting conditions. A positive rake geometry reduces cutting forces, while the GUP chip breaker promotes effective chip evacuation. Licensed machinists and CNC operators install this insert using a mechanical clamp holding method.

This insert is suited for production turning environments where consistent groove width and dimensional accuracy are required. The EG-P-GUP-Metric style fits toolholders designed for the Beyond Evolution insert system. With a neutral hand, it can be positioned for a range of grooving setups without requiring a handed toolholder. It is appropriate for general-purpose grooving on steel and similar workpiece materials where the AlTiN coating provides an advantage in elevated cutting temperatures.

Key Features

• 0.1575 inch (4.00 mm) cutting width for consistent groove dimensions
• KCU10B carbide grade with AlTiN coating for heat and wear resistance
• Positive rake angle reduces cutting forces and vibration
• GUP chip breaker design promotes reliable chip control
• Neutral hand orientation for versatile toolholder compatibility
• Mechanical clamp insert holding method for secure seating under load

Compatibility

Designed for use with EG-P-GUP-Metric style toolholders in the KENNAMETAL Beyond Evolution grooving system, insert seat size 4.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator with the machine powered down and the spindle locked. Use the appropriate torque wrench and clamp hardware specified for the Beyond Evolution toolholder to secure the insert. Inspect the insert pocket for debris or damage before seating the insert. Never exceed the cutting parameters rated for the insert grade and workpiece material combination.
