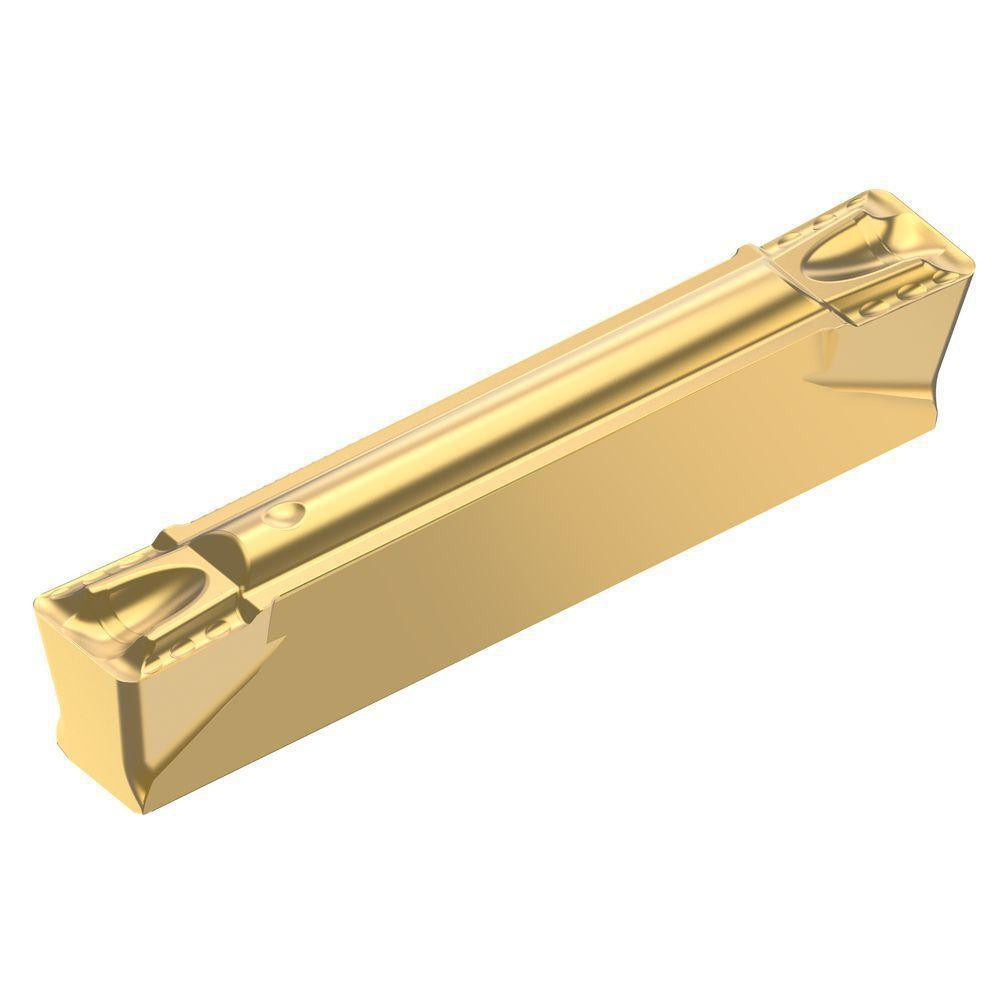

Kennametal 7096734 A4G Grooving Insert Carbide Altin

Product Description

The KENNAMETAL 7096734 is a carbide grooving insert in the A4 series, designed for precision groove turning operations on CNC lathes and turning centers. This double-ended, neutral-hand insert features a cutting width of 0.118 inches (3.000 mm) and a maximum depth of cut of 0.115 inches (2.90 mm). It carries manufacturer grade KCU10B with an AlTiN coating applied by PVD process, providing elevated heat resistance and extended tool life. The insert uses a clamp-style holding method and is installed by experienced machinists and CNC operators in production and job-shop environments.

The 7096734 is suited for grooving, parting, and recessing applications in ferrous and non-ferrous materials. Its positive rake geometry and GUP chip breaker design promote efficient chip evacuation and reduced cutting forces, making it a practical choice for tight-tolerance groove profiles in both light and moderate cutting conditions. The double-end configuration allows both cutting edges to be used before replacement, improving cost efficiency per edge.

Key Features

• A4G insert style with size code 3 for use with compatible A4 series toolholders
• Cutting width of 0.118 inches (3.000 mm) for consistent groove sizing
• Maximum depth of cut of 0.115 inches (2.90 mm)
• KCU10B carbide grade with AlTiN PVD coating for wear resistance
• Double-end design with 2 cutting edges per insert
• Positive rake and GUP chip breaker for controlled chip flow
• Corner radius of 0.016 inches (0.40 mm) for accurate groove geometry

Compatibility

Designed for use with KENNAMETAL A4 series grooving toolholders that accept size 3 inserts with a clamp holding method. Verify toolholder seat size and insert style match before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and locked out before changing inserts. Seat the insert firmly in the toolholder pocket and secure the clamp to the toolholder manufacturer's specified procedure. Inspect the insert seat and clamp for debris or wear before each index or replacement.
