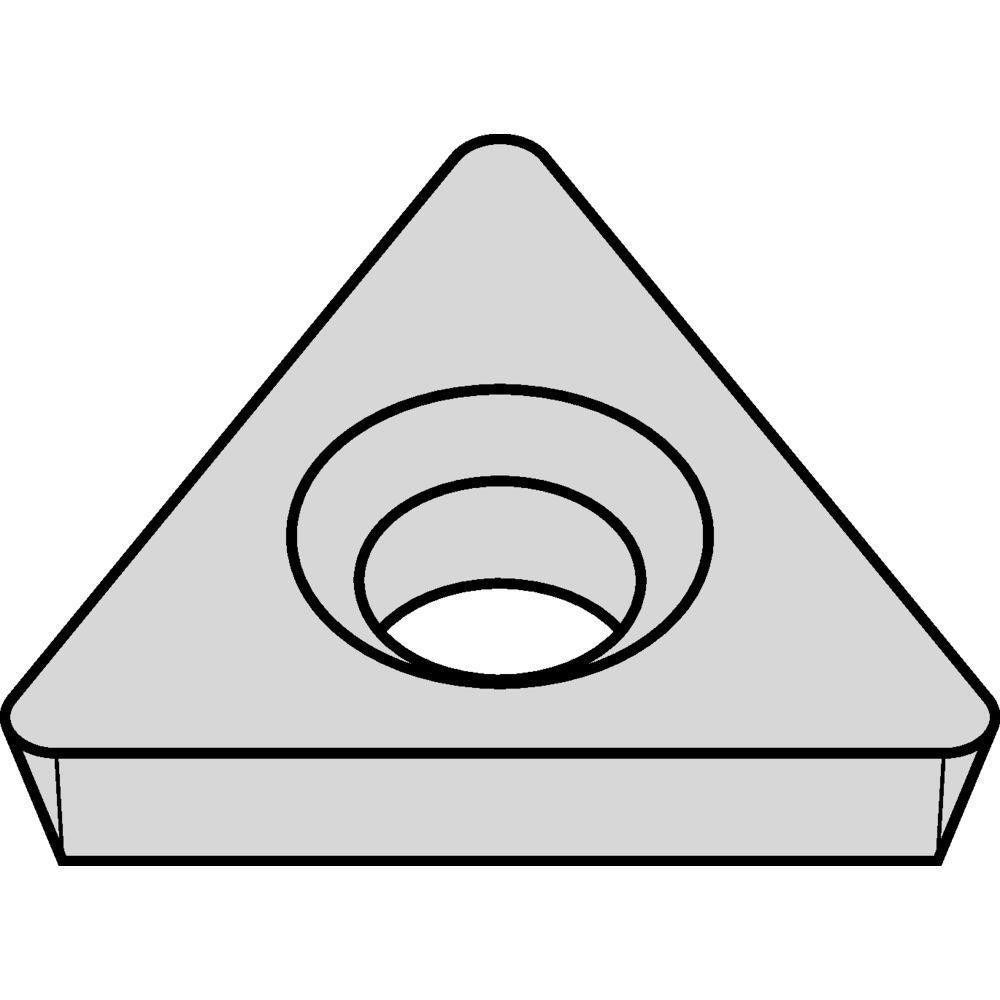

Kennametal 7096385 Turning Insert Triangle Tdhb Carbide

Product Description

The KENNAMETAL 7096385 is a triangular carbide turning insert designed for precision external turning operations on CNC lathes and manual turning centers. Manufactured to the TDHB insert style with a 60-degree included angle, this insert carries a KCU10B grade carbide substrate with an AlTiN (aluminum titanium nitride) coating for extended tool life in demanding cutting conditions. The relief angle measures 15 degrees, providing adequate clearance for finish and semi-finish turning passes. With three cutting edges per insert, it delivers a favorable cost-per-edge ratio for high-volume production environments. Machinists and tooling specialists rely on this insert for consistent performance across ferrous and non-ferrous workpiece materials.

This insert is suited for turning applications on CNC machining centers and manual lathes where a neutral-hand, triangular insert geometry is required. The TDHB style with an AlTiN coating is a common selection for turning hardened steels and high-temperature alloys where heat resistance and wear performance are priorities. The B-type chip breaker geometry assists with chip control during medium-depth finishing cuts. This insert is sold individually but must be ordered in minimum quantities of five units.

Key Features

• Triangle insert shape (T) with 60-degree included angle for versatile turning geometry
• KCU10B carbide grade with AlTiN coating for improved heat and wear resistance
• 15-degree relief angle with TDHB insert style designation
• Neutral hand orientation compatible with standard triangle insert toolholders
• Three usable cutting edges per insert for extended service life
• B-type chip breaker for controlled chip evacuation on finish turning passes

Compatibility

Designed as an OEM-style replacement turning insert for standard triangle insert toolholders accepting TDHB-style inserts with a T insert shape code and D clearance code.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Power down and lock out the machine before seating or indexing inserts. Ensure the insert pocket and clamping hardware are clean and free of chips before installing. Follow the toolholder manufacturer torque guidelines for the clamping screw to avoid insert cracking or seat damage.
