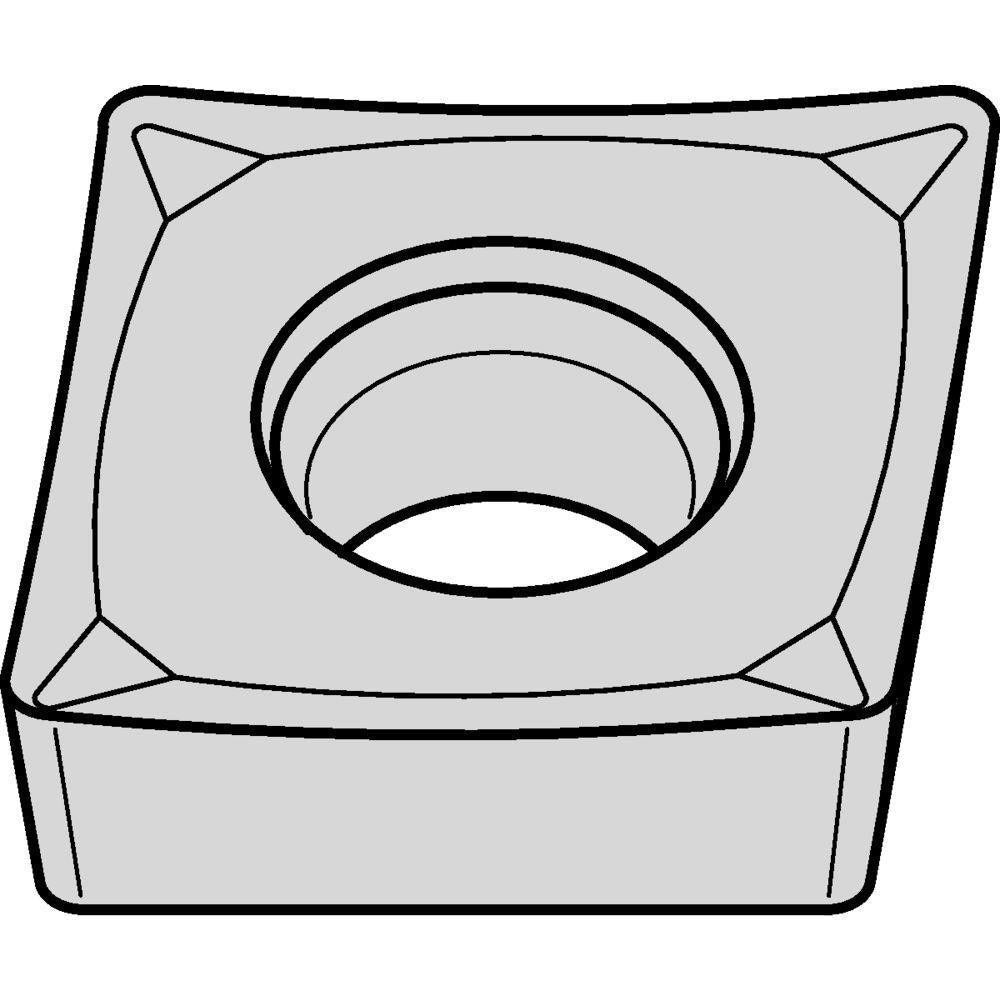

Kennametal 7093380 Ccgt Carbide Turning Insert

Product Description

The KENNAMETAL 7093380 is a CCGT-style carbide turning insert designed for precision metal cutting operations on CNC lathes and turning centers. It features an AlTiN coating over a KCU10B carbide substrate, providing strong heat resistance and wear performance in demanding cutting conditions. The insert has a diamond shape (C code) with an 80-degree included angle, a 7-degree relief angle, and a 0.008-inch corner radius. The HP chip breaker geometry helps manage chip flow during turning passes. Licensed machinists and CNC operators working in production or job-shop environments install and index these inserts as part of routine tooling changes.

This insert is suited for finish and semi-finish turning applications where tight tolerances and fine surface finishes are required. The neutral hand orientation allows flexible positioning in compatible toolholders. With 2 cutting edges per insert, it delivers consistent performance across indexed positions. It is commonly used in applications involving non-ferrous metals and materials where AlTiN coating provides effective thermal protection and extended tool life.

Key Features

• CCGT insert style with HP chip breaker for controlled chip evacuation
• AlTiN coating on KCU10B carbide substrate for heat and wear resistance
• Diamond insert shape with 80-degree included angle for versatile turning geometry
• 0.008-inch (0.20 mm) corner radius for fine surface finish capability
• Neutral hand orientation for flexible toolholder compatibility
• 2 cutting edges per insert for indexed use

Compatibility

Designed as a replacement-style CCGT turning insert for use in standard CCGT-compatible toolholders accepting inserts with a 3/32-inch thickness and C-style clearance geometry. Verify toolholder specifications before installation.

Installation Notes

Installation of indexable turning inserts should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine before indexing or replacing inserts. Use the correct torque wrench for the insert clamping screw to avoid seat damage or insert fracture — refer to the toolholder manufacturer specifications for proper clamping torque. Inspect the insert pocket and seating surface for chips or debris before seating a new insert.
