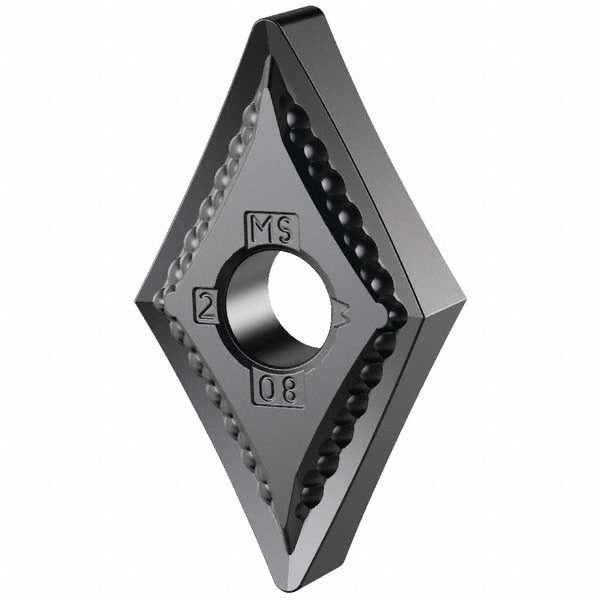

Kennametal 7093294 Dnmg Turning Insert Carbide Altin

Product Description

The KENNAMETAL 7093294 is a DNMG-style carbide turning insert designed for precision metal cutting on CNC lathes and turning centers. It features a 55-degree diamond insert shape with a neutral hand orientation, making it suitable for both external and internal turning operations. The insert is manufactured in grade KCU10B with an AlTiN (aluminum titanium nitride) coating, which provides thermal resistance and extended tool life in demanding cutting conditions. With four cutting edges per insert, it delivers strong value in high-volume production environments. Licensed machinists and CNC operators working in metalworking, aerospace, and general manufacturing applications are the primary installers and users of this tooling.

This insert is suited for finish and semi-finish turning operations on steel, stainless steel, and similar materials where tight tolerances and consistent surface finish are required. The MS chip breaker geometry supports controlled chip evacuation in medium cutting conditions. The DNMG insert style fits standard DNMG-compatible toolholders commonly used in production and job-shop turning setups. The 1/2-inch inscribed circle and 3/16-inch thickness make it a standard sizing widely encountered in industrial turning applications.

Key Features

• DNMG insert style with 55-degree diamond shape for versatile turning applications
• KCU10B carbide grade with AlTiN coating for heat resistance and wear performance
• MS chip breaker geometry for controlled chip flow in medium turning conditions
• Four cutting edges per insert for extended tooling service life
• Neutral hand orientation compatible with a wide range of toolholder setups
• 1/2-inch inscribed circle with 3/16-inch thickness conforms to standard DNMG sizing

Compatibility

Designed to fit standard DNMG-compatible turning toolholders used in CNC lathe and turning center applications. Confirm toolholder seat size and insert style code before installation.

Installation Notes

This insert is installed by qualified machinists or CNC tooling technicians. Power down and lock out the machine before changing inserts. Use the appropriate torque wrench and clamping hardware specified by the toolholder manufacturer when securing the insert. Inspect the toolholder seat for chips or damage before seating a new insert to avoid premature edge failure.
