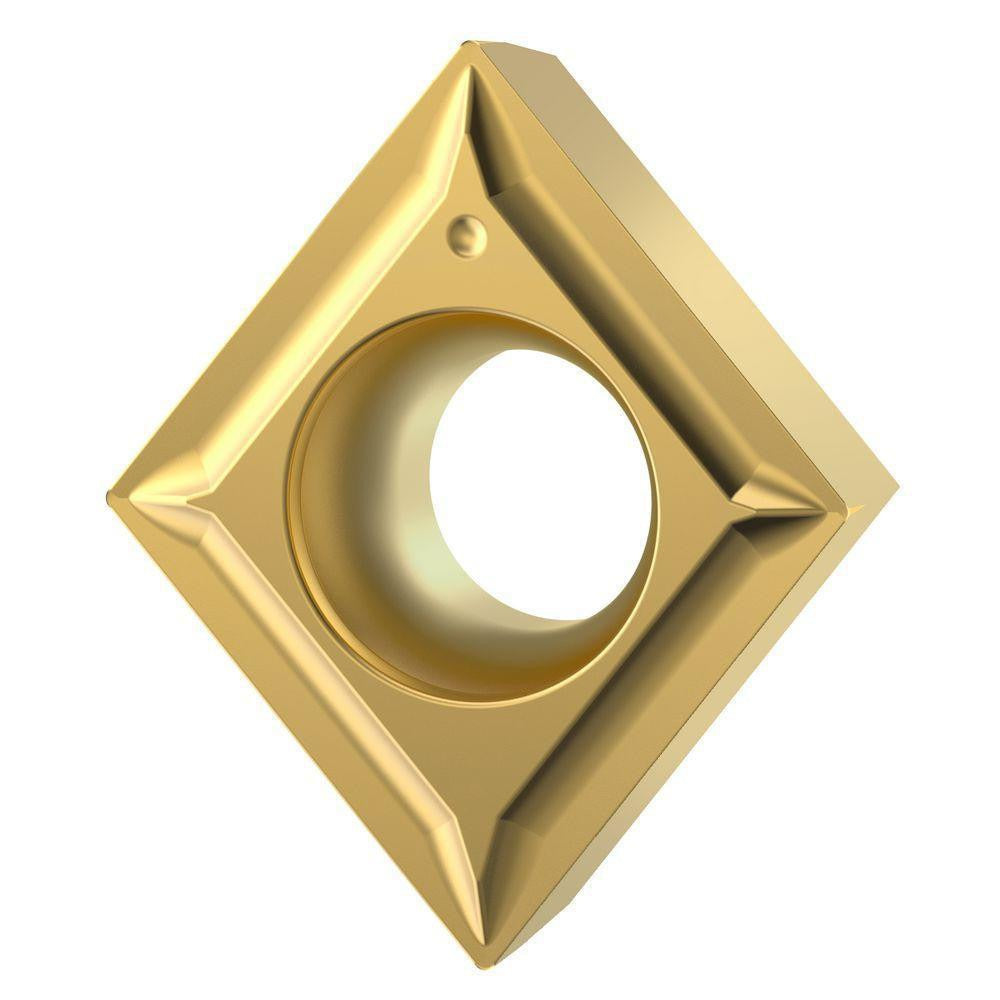

Kennametal 7093151 Ccgt Carbide Turning Insert

Product Description

The KENNAMETAL 7093151 is a CCGT-style carbide turning insert designed for precision metal cutting operations on CNC and manual lathes. Manufactured in a diamond shape (80-degree included angle) with an AlTiN coating and KCU10B grade carbide substrate, this insert delivers wear resistance and thermal stability in demanding turning applications. The 0.004 inch (0.10 mm) corner radius makes it suited for finishing and light semi-finishing passes where tight tolerances and fine surface finishes are required. The LF chip breaker geometry promotes controlled chip evacuation during operation.

This insert is used in external and internal turning applications across general machining, aerospace, and automotive component work. The neutral hand orientation allows flexible toolholder mounting. With two cutting edges per insert and a 5/32 inch thickness, the 7093151 is a direct replacement-grade insert intended for production shops and tool crib replenishment. It is typically installed by machinists and CNC operators in turning centers handling ferrous and non-ferrous workpiece materials.

Key Features

• CCGT insert style with diamond shape (C code) and 80-degree included angle
• AlTiN coating over KCU10B carbide grade for thermal and wear resistance
• 0.004 inch (0.10 mm) corner radius for finish and light semi-finish turning
• LF chip breaker geometry for controlled chip flow
• Neutral hand insert — compatible with both left- and right-hand toolholders
• Two usable cutting edges per insert

Compatibility

Designed as an OEM-style replacement turning insert for CCGT-compatible toolholders using C-shape (diamond) insert pockets with G-tolerance and C-clearance specifications.

Installation Notes

Installation is performed by machinists using a torx or hex key appropriate to the toolholder clamp system. Ensure the machine spindle is fully stopped and the toolholder is secured in the turret before seating or indexing the insert. Inspect the insert pocket for debris or damage before installation to ensure proper seating and edge integrity. Follow the toolholder manufacturer's clamping torque guidelines.
