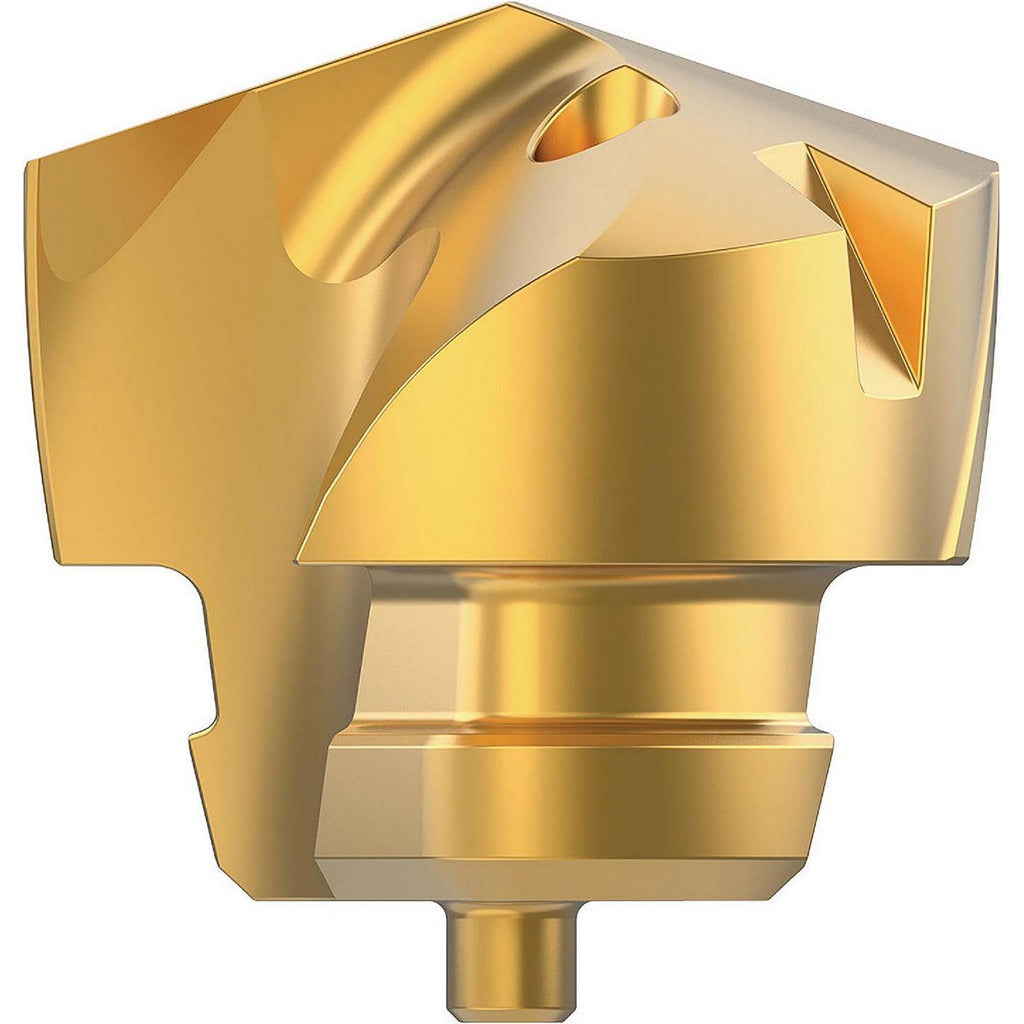

Kennametal 7002520 Replaceable Drill Tip 11.1mm 140deg

Product Description

The KENNAMETAL 7002520 is a replaceable drill tip designed for use in modular indexable drill systems. It features an 11.1 mm cutting diameter and a 140-degree drill point angle, making it suited for general-purpose drilling in a range of metalworking applications. The tip is manufactured from solid carbide with a fine grain substrate and carries the KC7325 manufacturer grade. A PVD-applied dual coating of TiAlN and TiN provides thermal resistance and wear protection. Through-coolant capability is built in to support higher cutting speeds and extended tool life in production environments. This insert is installed and maintained by machinists and CNC toolroom technicians.

This replaceable drill tip is intended for use in steel, stainless steel, cast iron, and superalloys including titanium-based materials, corresponding to ISO material groups P, M, K, and S. It is suited for standard drilling, inclined-exit drilling, and stacked-plate drilling operations. The GTP insert geometry and regular helical spiral flute configuration support chip evacuation in these demanding conditions. The tip mounts in an L-seat insert holder and is secured by a clamp holding method. It carries the ISO designation KTFST11100GTPM and belongs to the KTFST series.

Key Features

• 11.1 mm cutting diameter with 140-degree standard point angle for positive centering
• Solid carbide fine grain construction under KC7325 grade for toughness and edge retention
• PVD-applied TiAlN and TiN dual coating for heat resistance and extended wear life
• Through-coolant design to manage chip evacuation and heat at the cutting zone
• 2-flute, 2-margin helical configuration supports inclined-exit and stacked-plate drilling
• Clamp-style retention in L-seat holder for repeatable tip indexing

Compatibility

Designed for use in KTFST-series modular drill bodies that accept an L-seat insert size. Compatible with drilling applications in ISO P, M, K, and S workpiece material groups including steel, stainless steel, cast iron, and superalloys and titanium.

Installation Notes

Installation is performed by a qualified machinist or CNC toolroom technician. Disengage the machine spindle and confirm the tool holder is fully de-energized before seating or removing the tip. Use the appropriate clamp key or torque wrench as specified by the drill body manufacturer to secure the insert clamp. Inspect the L-seat for chips or wear before installing a new tip to ensure proper seating and runout performance.
