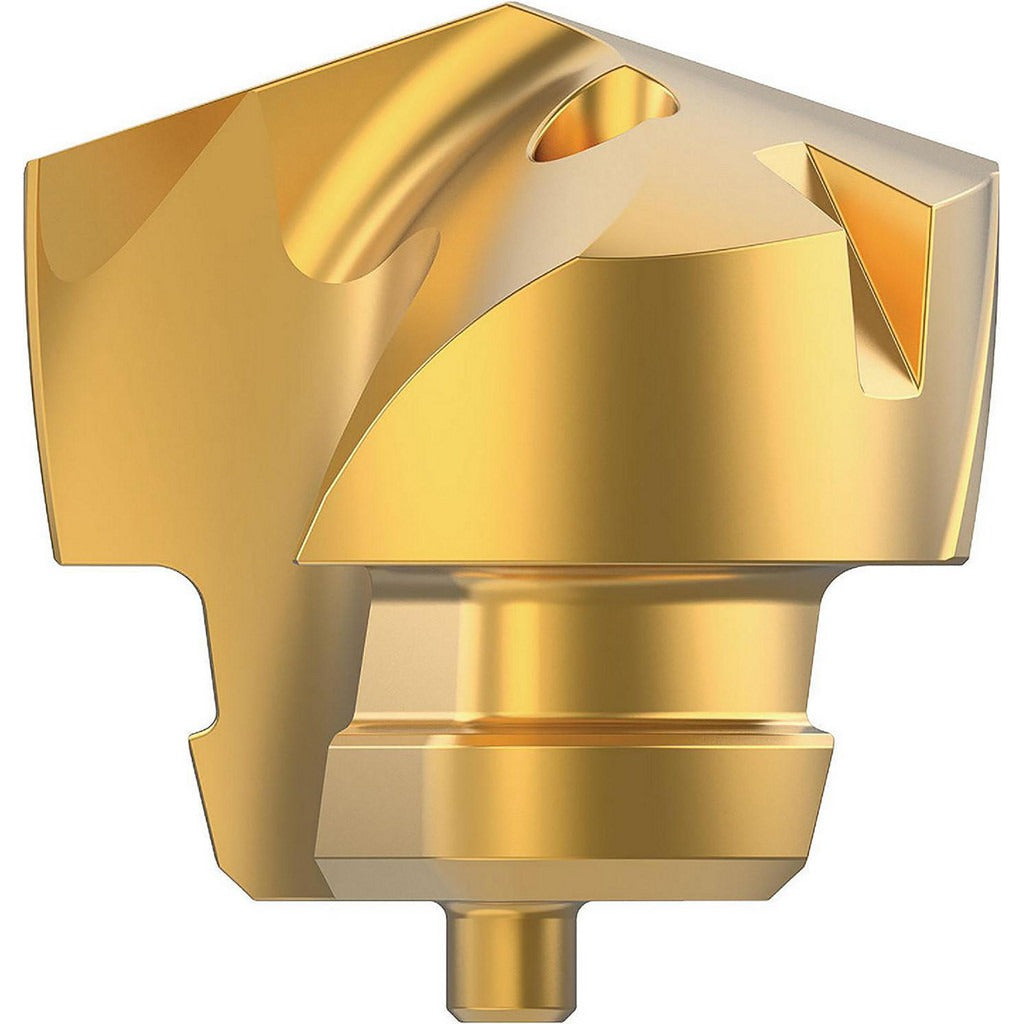

Kennametal 7002468 Replaceable Drill Tip 15/16 in 140 Deg

Product Description

The KENNAMETAL 7002468 is a solid carbide replaceable drill tip designed for use with KTFST-series modular drill bodies. It carries a cutting diameter of 15/16 inch (0.9374 inch / 23.81 mm) and a 140-degree drill point angle suited for general-purpose and interrupted-cut drilling operations. The tip is manufactured from fine-grain solid carbide in grade KC7325 and features a dual-layer TiAlN/TiN PVD coating for thermal resistance and extended tool life. A through-coolant design delivers cutting fluid directly to the cutting edge, supporting chip evacuation and heat control in deep-hole applications. Insert seat size is ZB. Installed by machinists and toolroom professionals in CNC drilling operations.

This replaceable tip is intended for drilling steel, stainless steel, cast iron, superalloys, and titanium across ISO material groups P, M, K, and S. Typical applications include standard drilling, inclined-exit drilling, and stacked-plate drilling in production machining environments. The two-flute, two-margin helical geometry and regular spiral flute configuration support chip flow in both through-hole and blind-hole configurations. The clamp-style insert holding method provides positive seating and repeatable positioning on compatible KTFST modular drill bodies.

Key Features

• Solid carbide construction in fine-grain KC7325 grade for toughness and wear resistance
• TiAlN/TiN PVD dual-layer coating for heat resistance and extended edge life
• 140-degree drill point angle for general-purpose drilling across multiple material groups
• Through-coolant capability for chip evacuation and thermal management in deep-hole drilling
• Two-flute, two-margin helical geometry supports accurate hole quality and stable cutting
• Compatible with inclined-exit and stacked-plate drilling applications

Compatibility

Designed for use with KTFST-series modular drill bodies using insert seat size ZB. ISO number reference: KTFST09375GTP. Compatible workpiece materials include steel, stainless steel, cast iron, superalloys, and titanium (ISO groups P, M, K, S).

Installation Notes

Installation and removal of replaceable drill tips should be performed by a qualified machinist following the toolholder manufacturer's torque and seating procedures. Ensure the spindle is fully stopped and the machine is locked out before changing inserts. Confirm the insert seat is clean and free of chips before seating the tip. Through-coolant passages should be inspected and cleared before assembly to ensure proper coolant flow during operation.
