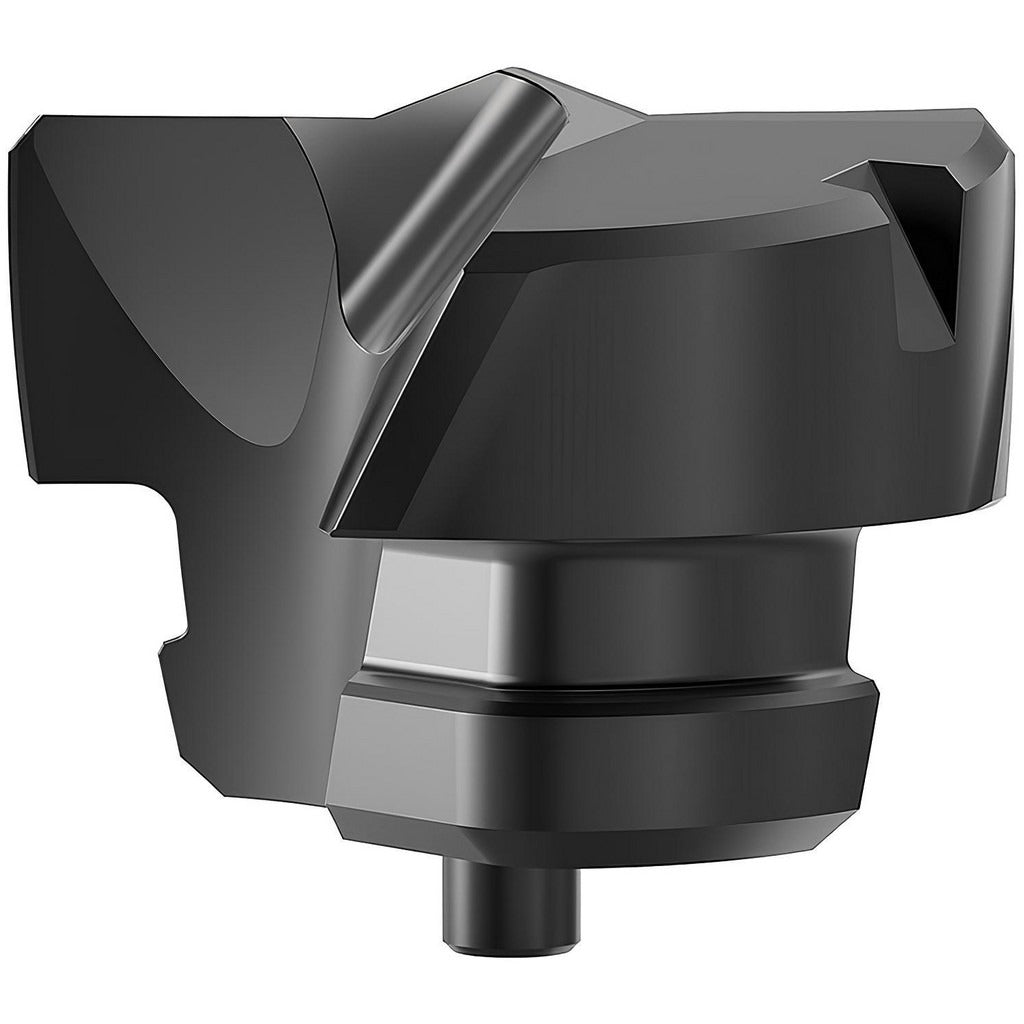

Kennametal 6771133 Replaceable Drill Tip 14.50mm KCP15A

Product Description

The KENNAMETAL 6771133 is a replaceable drill tip designed for use with compatible indexable drill bodies in the KTFSS series. The tip features a 14.50 mm cutting diameter, a 180-degree included angle with a flat point geometry, and is manufactured from fine-grain solid carbide in grade KCP15A. An AlTiN coating applied via PVD process improves heat resistance and extends tool life in demanding cutting conditions. The straight-flute, two-flute configuration with a four-margin design provides stable guidance and accurate hole positioning. This tip is intended for professional machining environments where repeatable hole quality and tool-change efficiency are critical.

This replaceable drill tip is suited for drilling operations in steel, stainless steel, and cast iron workpieces. The flat-point geometry supports flat-bottom drilling, inclined entry, inclined exit, and counterboring applications. The insert seat size is S, and the tip clamps into compatible KTFSS-series drill bodies. It is appropriate for use in CNC machining centers and production drilling environments across manufacturing, fabrication, and toolroom settings. The tip does not include through-coolant capability.

Key Features

• 14.50 mm cutting diameter with 180-degree flat point for flat-bottom and through-hole drilling
• Fine-grain solid carbide construction in grade KCP15A for wear resistance in ferrous materials
• AlTiN coating via PVD process improves thermal stability and oxidation resistance
• Two-flute, four-margin geometry supports accurate hole guidance and surface finish
• Straight flute and straight spiral design suited for short-chipping materials including cast iron
• Compatible with inclined entry, inclined exit, flat-bottom, and counterboring operations

Compatibility

Designed for use with KTFSS-series indexable drill bodies accepting insert seat size S. ISO number KTFSS14500FEGM. Compatible with primary workpiece materials coded P (steel), M (stainless steel), and K (cast iron) per ISO material classification.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before seating or removing the tip. Seat the tip fully and engage the clamp mechanism according to the drill body manufacturer guidelines before any cutting operation. Inspect the seating pocket for chips or wear before inserting a new tip, as contamination in the seat can affect runout and hole accuracy.
