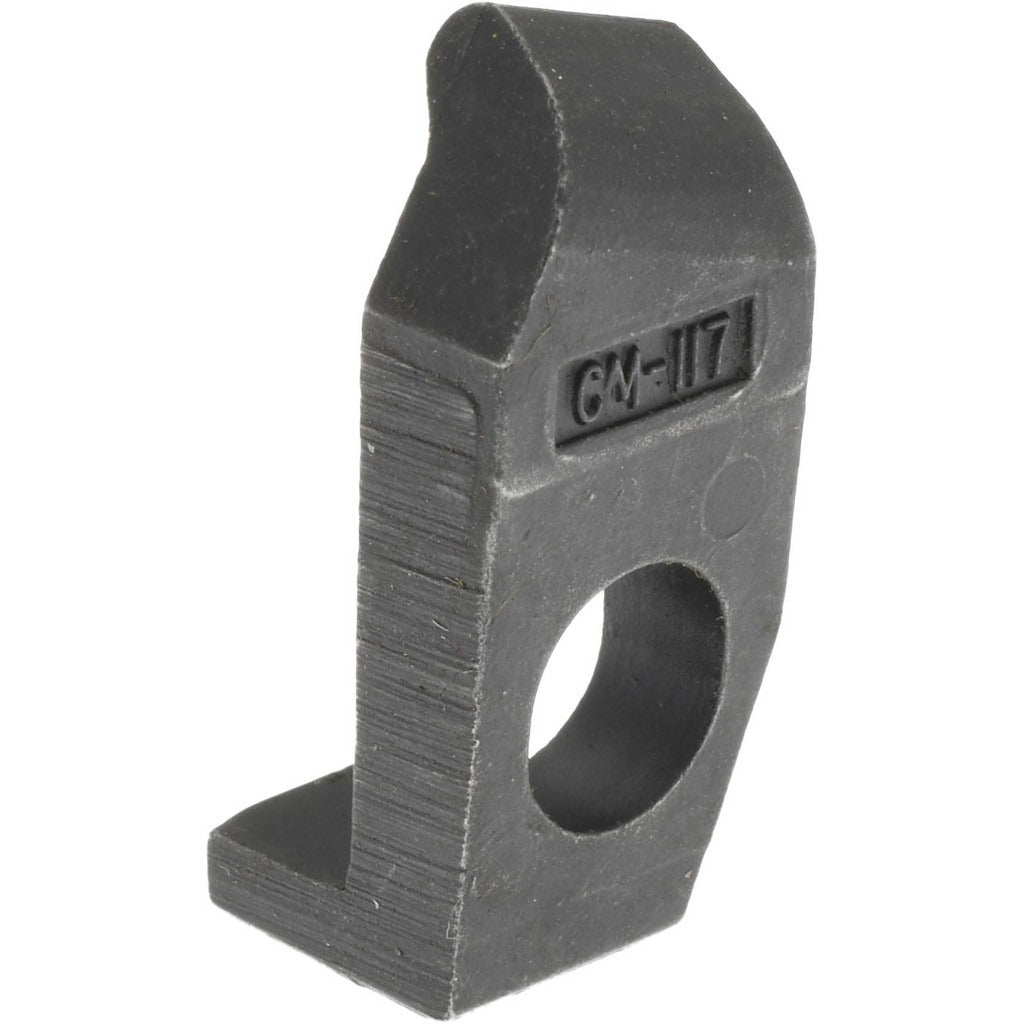

Kennametal 1021663 Cm Clamp Indexables Left Hand Top Notch

Product Description

The KENNAMETAL 1021663 is a CM-style clamping component designed for use with indexable insert toolholders in the Top Notch series. It secures indexable inserts during turning and grooving operations, maintaining precise insert positioning under cutting loads. Designed for left-hand cutting direction, this clamp works with S532 clamp screws and is suited for CNC lathe and manual lathe applications. At 0.05 pounds, it is a compact, lightweight component. Installation is performed by machinists and toolroom technicians as part of toolholder assembly or insert changeover.

This clamp is intended for use in metal cutting environments where Top Notch series indexable toolholders are in service. It supports left-hand cutting setups on turning centers and engine lathes. Compatible complete toolholders include H20NDQPR4W, H24NDQPR4W, H32NDQPR4W, H40NDQPR4W, NDLPL 164C, NDLPL 164D, and NDLPL 204D. It is a direct-replacement clamp component for field insert changes or toolholder refurbishment.

Key Features

• CM clamp style for Top Notch series indexable toolholders
• Left-hand cutting direction configuration
• Compatible with S532 clamp screws
• Fits multiple Top Notch toolholder models including H20NDQPR4W, H24NDQPR4W, H32NDQPR4W, and H40NDQPR4W
• Lightweight construction at 0.05 pounds
• UNSPSC Code 23242100 for procurement classification

Compatibility

Compatible with Top Notch series toolholders H20NDQPR4W, H24NDQPR4W, H32NDQPR4W, H40NDQPR4W, NDLPL 164C, NDLPL 164D, and NDLPL 204D. Designed for use with S532 clamp screws.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician during insert indexing or toolholder service. Ensure the toolholder is removed from the machine spindle and all motion has stopped before servicing the clamp. Use the correct S532 clamp screw and appropriate torx or hex key as specified by the toolholder manufacturer. Do not substitute clamp screws of a different series, as improper clamping force can cause insert movement or ejection during cutting.
