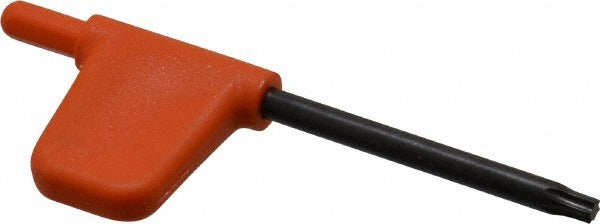

Kennametal 1021605 Flag Handle Driver T15 Torx

Product Description

The KENNAMETAL 1021605 is a flag-handle driver designed for seating and torquing insert screws on indexable cutting tools. The T15 Torx drive head engages insert screws securely, reducing the risk of cam-out and screw head damage during insert changes. This style of driver uses a flag-handle configuration, which provides the hand torque control needed when servicing indexable milling, turning, and boring tool bodies. It is a standard service tool kept in the tool crib or on the bench of any machinist or tooling technician working with indexable tooling systems.

The 1021605 is used in metalworking environments wherever indexable inserts are replaced on a regular basis. Typical applications include CNC lathe and machining center tooling maintenance, manual lathe setups, and production floor insert change-outs. The flag-handle design gives the technician positive grip and controlled torque when fastening T15 Torx insert screws to the required seating torque. This driver is sold individually and is suited for both production shops and tool rooms maintaining a range of indexable toolholders.

Key Features

• T15 Torx drive for secure, cam-out-resistant engagement with insert screws
• Flag-handle configuration allows controlled hand torque during insert changes
• Compatible with T15 Torx insert screws used on indexable milling and turning bodies
• Lightweight at 0.0176 pounds for easy bench or tool crib storage
• Sold as a single unit with no minimum order requirement beyond one piece

Compatibility

Designed for use with T15 Torx insert screws on indexable cutting tool bodies. Specific compatible toolholder model numbers were not provided in available product data; verify insert screw drive type against your toolholder documentation before ordering.

Installation Notes

Insert driver changes should be performed with the machine powered down and the spindle locked or secured. Apply hand torque only using the flag handle — do not use extensions or additional leverage, as overtorquing insert screws can fracture the screw or damage the toolholder pocket. Replace the driver if the Torx tip shows visible wear or rounding to prevent screw head damage. This is a bench hand tool; no power tools or calibrated torque wrenches are required for standard insert seating unless the toolholder OEM specifies otherwise.
