Kennametal 1021507 Indexable Insert Screw M5x0.8

Product Description

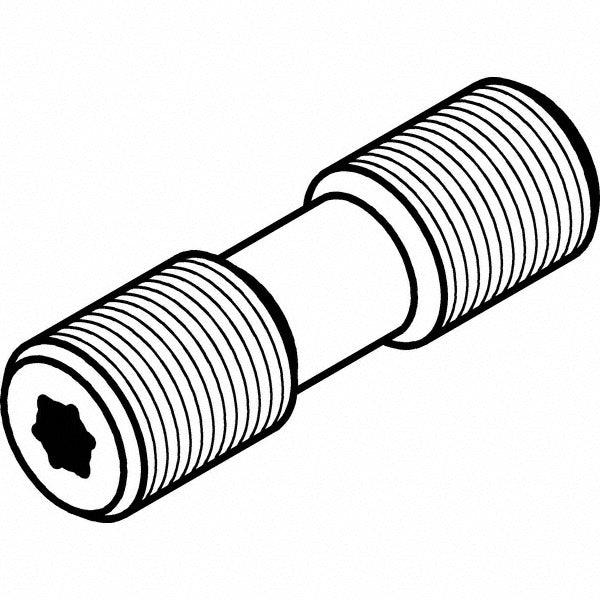

The KENNAMETAL 1021507 is a replacement clamping screw designed for indexable toolholder assemblies. It features an M5x0.8 thread and a 2 mm hex socket drive, providing secure insert retention in compatible toolholders and cartridges. This hardware is used to clamp cutting inserts in place during machining operations, maintaining precise positioning under cutting forces. Installation and replacement are performed by machinists and toolroom technicians during insert indexing or changeover. The small form factor and standardized thread make it a routine consumable in production and job-shop environments.

This screw is suited for use in turning, threading, and grooving toolholder assemblies that rely on mechanical clamping hardware. It is compatible with cartridge and clamp-style insert seats across the Kendex and Kenloc series. Applicable insert geometries include TP.. 110304 and TP.. 421 styles. Clamp compatibility includes the CKM34 clamp. This part is also identified under the CTFP toolholder style. It is sold individually but must be ordered in multiples of 10.

Key Features

• M5x0.8 thread for secure engagement in compatible toolholder bodies
• 2 mm hex socket drive for standard L-key or hex bit installation
• Compatible with cartridge, clamp, and insert hardware applications
• Fits Kendex and Kenloc series toolholders
• Supports TP.. 110304 and TP.. 421 complete insert compatibility
• CKM34 clamp compatibility for direct hardware matching

Compatibility

Compatible with CTFP toolholder style and CKM34 clamp. Fits cartridge and clamp-style insert seats in the Kendex and Kenloc series. Insert compatibility includes TP.. 110304 and TP.. 421 styles.

Installation Notes

Installation is performed by machinists or toolroom personnel during insert indexing or replacement. Power down and fully stop the machine spindle before accessing any toolholder hardware. Use a calibrated 2 mm hex key to seat the screw without applying excessive torque, which can strip the socket or damage the toolholder thread. Follow the toolholder manufacturer's service documentation for proper clamping procedure.
