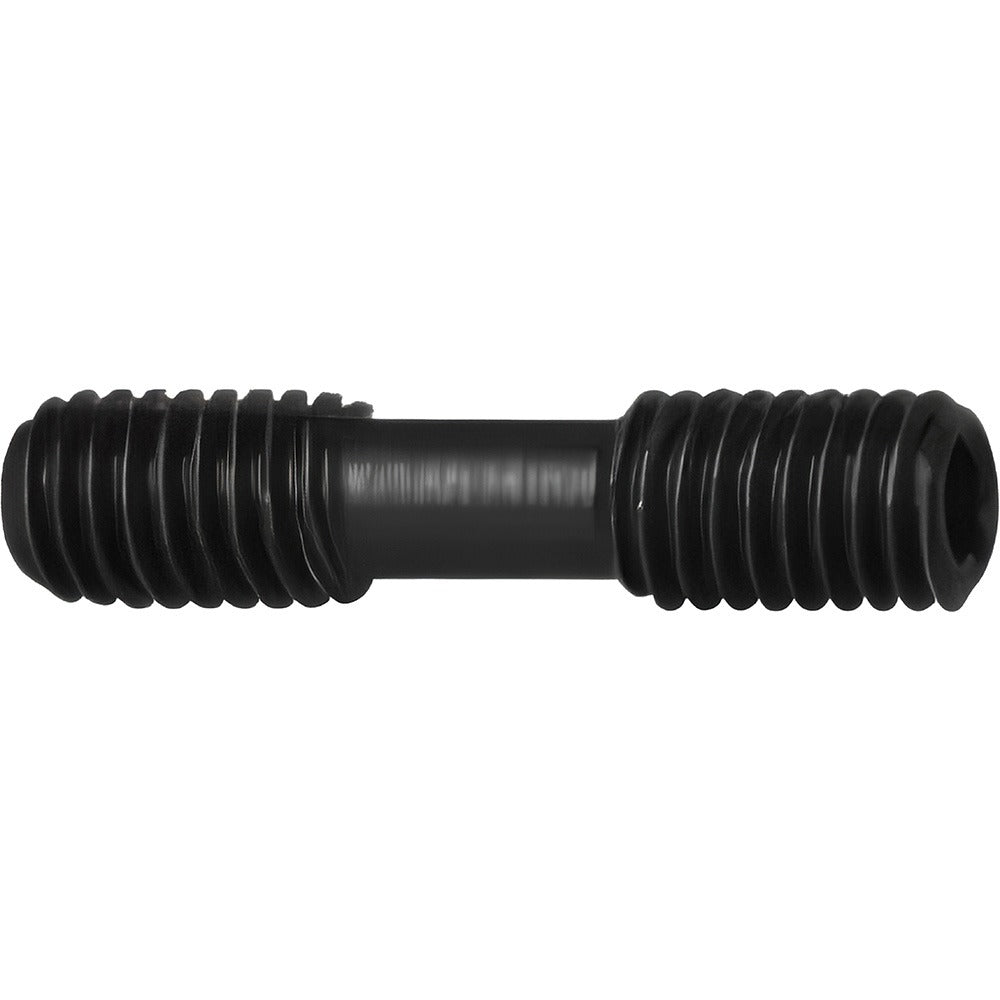

Kennametal 1019382 Indexable Clamp Screw 10-32 Thread

Product Description

The KENNAMETAL 1019382 is a replacement clamp screw designed for indexable cutting tools used in milling and turning applications. This hardware-grade fastener features a 10-32 thread size and accepts a 3/32 inch hex socket drive, making it compatible with standard hex keys used in most machine shop and field tooling environments. The screw secures indexable inserts to their toolholders by engaging the clamp mechanism. At 0.0035 pounds, it is a lightweight but precision-critical component. Machinists, toolroom technicians, and CNC setup personnel are the primary users of this type of fastener.

This screw is used wherever indexable insert toolholders require clamp-style retention hardware. It is suited for both milling and turning setups on CNC lathes, machining centers, and manual machines. The 10-32 thread is a common standard in indexable toolholder hardware, making this screw applicable across a range of tool body styles that use clamp-type insert retention. It is sold individually, with a minimum order quantity of 10 units per transaction.

Key Features

• 10-32 thread size for clamp-style indexable toolholders
• 3/32 inch hex socket drive compatible with standard hex keys
• Applicable to both milling and turning indexable tool types
• Lightweight at 0.0035 pounds, precision-machined replacement hardware
• Sold individually per package; minimum order quantity of 10

Compatibility

Designed for use with clamp-style indexable toolholders in milling and turning applications that require a 10-32 threaded clamp screw with a 3/32 inch hex socket drive. No specific toolholder model numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician with the machine powered down and any rotating spindles fully stopped. Use the correct 3/32 inch hex key to avoid rounding the socket drive. Do not over-torque the clamp screw, as this can damage the insert seat or the screw threads. Replace any screw that shows signs of thread damage, stripping, or deformation.
