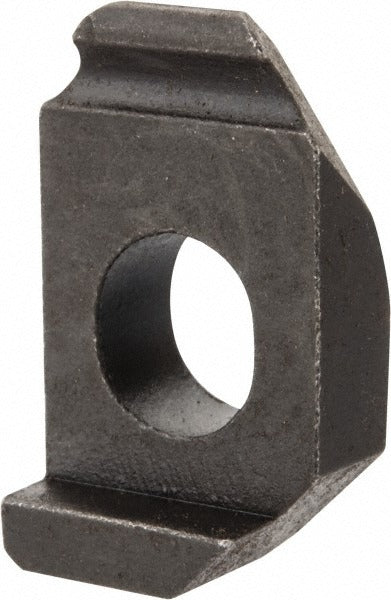

Kennametal 1018529 Cm Clamp Left Hand Top Notch

Product Description

The KENNAMETAL 1018529 is a CM-style clamp designed for use in the Top Notch series of indexable toolholding systems. It secures indexable inserts in left-hand cutting applications, providing consistent clamping force to maintain insert position during turning operations. The clamp is compatible with S524 clamp screws and is installed by machinists and CNC lathe operators as part of a complete indexable toolholder assembly. At 0.05 pounds, it is a lightweight precision component built for repeatable performance in production turning environments.

This clamp is intended for left-hand cut toolholder configurations within the Kennametal Top Notch system. It is used in external turning applications on CNC lathes and manual turning centers where indexable inserts are held in dedicated toolholder bodies. The CM clamp style is specific to Top Notch toolholder bodies that require this clamp geometry for proper insert seating and cutting edge exposure.

Key Features

• CM clamp style designed for Top Notch series indexable toolholders
• Left-hand cutting direction configuration
• Compatible with S524 clamp screws for secure insert retention
• Lightweight at 0.05 pounds for minimal toolholder assembly mass
• Sold individually with a minimum order quantity of 5 units

Compatibility

Compatible with the following Top Notch toolholder models: A10NKLCL05, NKLCL 0805V, and NKLCL 1005B. Requires S524 clamp screws.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the machine before servicing any toolholder components. Use the appropriate S524 clamp screw and torque to the toolholder manufacturer specifications found in the Top Notch system documentation. Inspect the clamp seat and insert pocket for debris or wear before seating the clamp.
