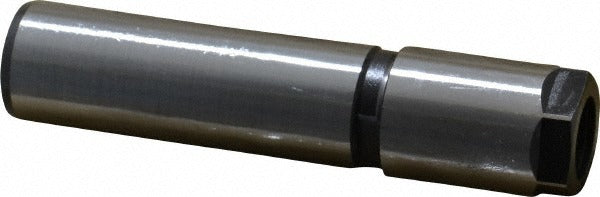

Kennametal 1015338 Double Angle Collet Chuck DA100

Product Description

The KENNAMETAL 1015338 is a DA100 series double angle collet chuck designed for precision toolholding in CNC machining centers and milling applications. The chuck features a 1-inch straight shank and a 1.94-inch projection, with a true indicator reading (TIR) of 0.0001 inches for high-accuracy tool positioning. Through-spindle coolant capability delivers cutting fluid directly to the tool tip. Actuation is accomplished with a standard wrench. The close-center nose type maximizes rigidity and minimizes runout at operating speeds up to 8,000 RPM, making this chuck suitable for demanding precision machining environments.

The 1015338 is suited for production machining operations where tight tolerances and consistent tool concentricity are required. The DA100 collet system accepts collets ranging from 1/64 inch minimum to 9/16 inch maximum capacity, covering a broad range of tool shank diameters in a single chuck body. Typical installations include vertical and horizontal CNC machining centers in job shops, aerospace, automotive, and general metalworking facilities where through-coolant capability is a process requirement.

Key Features

• DA100 double angle collet system with 0.0001-inch TIR for high-precision toolholding
• Through-spindle coolant delivery for improved chip evacuation and tool life
• 1-inch straight shank with 1.94-inch projection and 4.88-inch overall length
• Collet capacity range from 1/64 inch to 9/16 inch
• Balanced to 8,000 RPM for stable high-speed operation
• Close-center nose type for maximum rigidity and minimal vibration

Compatibility

Designed for use with DA100 series double angle collets. Accepts collets with a minimum capacity of 1/64 inch and a maximum capacity of 9/16 inch. Confirm spindle interface and collet series compatibility before installation.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with collet chuck systems. Power down and lock out the spindle drive before mounting or removing the chuck from the machine spindle. Use the correct wrench size for the 1-1/16-inch hex diameter when torquing the collet nut. Verify TIR with a test indicator after mounting to confirm runout is within tolerance before beginning production cuts.
