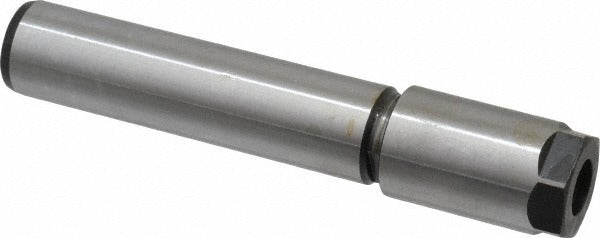

Kennametal 1015334 DA200 Double Angle Collet Chuck

Product Description

The KENNAMETAL 1015334 is a double angle collet chuck with a straight shank, designed for use with DA200-series collets in CNC machining and manual milling applications. It features a 1.69-inch projection and a total indicated runout (TIR) of 0.0001 inches (0.0025 mm), making it well-suited for precision toolholding where concentricity is critical. Through-spindle coolant capability is built in, supporting high-efficiency metal removal with flood or coolant-through tooling. The chuck is balanced to 8,000 RPM and actuated with a standard wrench, keeping setup straightforward for machinists and toolroom technicians.

This collet chuck is used in vertical and horizontal machining centers, milling machines, and CNC lathes where DA200-series collets are the specified toolholding standard. It accommodates a collet capacity range from 1/64 inch minimum to 25/64 inch maximum, covering a broad range of small-diameter end mills, drills, and reamers. The straight shank diameter of 3/4 inch and a shank length of 3.00 inches fit standard spindle bores and toolholding blocks found in light-duty production and toolroom environments. Licensed machinists and CNC setup technicians are the typical end users.

Key Features

• DA200 collet series compatibility for wide tooling interchangeability
• TIR of 0.0001 inches (0.0025 mm) for high-precision concentricity
• Through-spindle coolant support via close-center nose type
• Balanced to 8,000 RPM for stable operation at moderate spindle speeds
• Wrench-actuated design using a 3/4-inch hex for fast, reliable clamping
• Straight shank at 3/4-inch diameter for broad spindle compatibility

Compatibility

Designed for use with DA200-series double angle collets. Fits machines equipped with a 3/4-inch straight shank spindle bore or toolholding block accepting this shank configuration. Collet capacity range of 1/64 inch to 25/64 inch.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Power down and lock out the machine spindle before installing or removing the collet chuck. Use the correct 3/4-inch hex wrench on the actuator when seating or releasing collets, and verify TIR with a dial indicator after installation. Consult the machine tool manufacturer's documentation for spindle torque and drawbar engagement requirements specific to the host machine.
