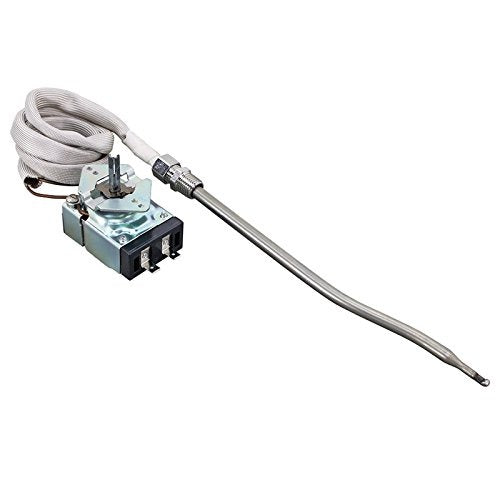

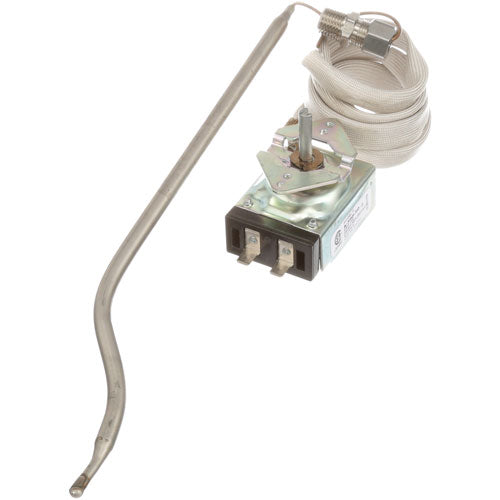

Keating 35574 Type K Thermostat 245-375F Ss Bulb

Product Description

The KEATING 35574 is a Type K thermostat designed for commercial cooking equipment applications requiring precise high-temperature control in the 245 to 375 degrees F range. The thermostat features a stainless steel bulb measuring 5/16 inches in diameter by 10 inches in length, paired with a 30-inch capillary tube with sleeving over the cap for protection. The bulb incorporates two 30-degree bends located at 1.75 inches and 2.5 inches from the tip, allowing it to fit the specific mounting geometry found in Keating fryer and cooking equipment assemblies. A licensed commercial kitchen equipment technician or qualified service professional typically handles installation of this component.

This thermostat is suited for commercial deep fryer and cooking equipment service where a capillary-type high-temperature sensing element is required. The 187-inch D-stem flat is positioned at the 2:00 orientation with terminals at the bottom, matching the control panel layout common in Keating cooking equipment. When replacing this thermostat, the compatible pointer knob is part number 22-1189 and the compatible dial plate is part number 22-1190, both sold separately.

Key Features

• Type K thermostat with a temperature range of 245 to 375 degrees F
• Stainless steel sensing bulb, 5/16 inches diameter by 10 inches length
• 30-inch capillary with protective sleeving over the cap
• Two 30-degree bulb bends at 1.75 inches and 2.5 inches from tip for precise fitment
• D-stem flat at 2:00 position with terminals at bottom for correct panel orientation
• Compatible pointer knob 22-1189 and dial plate 22-1190 available separately

Compatibility

Designed as a direct OEM-style replacement thermostat for Keating commercial cooking equipment. Compatible pointer knob: 22-1189. Compatible dial plate: 22-1190.

Installation Notes

Installation should be performed by a qualified commercial kitchen equipment technician familiar with high-temperature capillary thermostat systems. Disconnect all electrical power to the unit before removing or installing the thermostat. Take care not to kink or sharply bend the capillary tube during installation, as damage to the capillary will cause inaccurate temperature sensing or complete failure. Verify terminal orientation and D-stem positioning before securing the control assembly.
