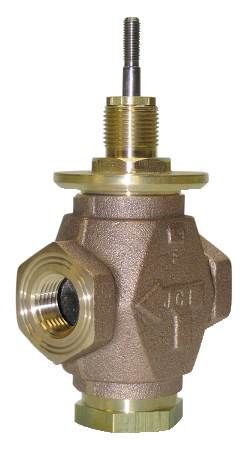

Johnson Controls VG7842LT3003B Globe Valve Assembly 3 Way 3/4 in. Replacement MPN

Product Description

The Johnson Controls VG7842LT3003B is a globe valve assembly designed for HVAC systems. This three-way valve features a three-quarter inch connection, suitable for various applications. It is built from durable bronze and includes a stainless steel stem paired with a molded elastomeric disk seat. The actuator operates efficiently within a pressure range of three to six psig, ensuring reliable performance.

• Static Pressure Rating: ANSI Class 250
• Operating Temperature: 35°F to 248°F (2°C to 120°C)
• Flow Characteristic: Linear

Product Highlights

This valve assembly serves in applications involving hot water, chilled water, and steam, making it an essential component in HVAC installations.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7842LT+3003B

Technical Specifications

• Material: Bronze Body
• Flow Coefficient (Cv): 7.3
• Closeoff Pressure: 144/29 psig
• Service: Hot Water, Chilled Water, Glycol Solutions, Steam
• Actuator Operating Conditions: -20°F to 150°F (-29°C to 66°C)
• Housing: Die-Cast Aluminum
• Air Connection: 1/8 in. NPT Barbed Fitting
• Minimum Order Quantity: 1
