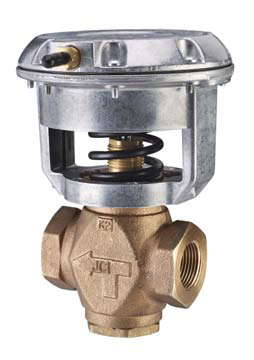

Johnson Controls VG7443CT+3003E Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7443CT+3003E is a globe valve assembly designed for efficient control in HVAC systems. This is a two-way valve with a half-inch connection. It is suitable for various applications including hot water and chilled water systems. The durable construction features a bronze body and stainless steel stem and seat.

• Suitable for hot water, chilled water, and glycol solutions.
• Built with a pneumatic actuator for precise control.
• Pressure range: 9 to 13 psi.

Product Highlights

This valve assembly offers reliable performance and is rated for static pressure up to ANSI Class 250.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7443CT+3003E

Technical Specifications

• Housing: Die-Cast Aluminum
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, and Steam for HVAC Systems
• Closeoff Pressure: 261 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35°F to 338°F (2°C to 170°C)
• Actuator Operating Conditions: -20°F to 150°F (-29°C to 66°C)
