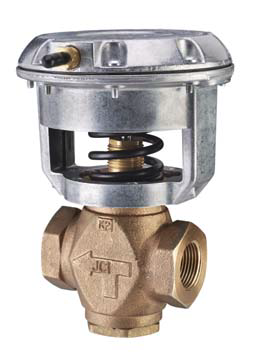

Johnson Controls VG7441ST3003B Globe Valve Assembly, 2 Way 2 in. Replacement MPN

Product Description

The Johnson Controls VG7441ST3003B is a two-way globe valve assembly designed for HVAC systems. This valve is suitable for hot water, chilled water, glycol solutions, and steam applications, making it versatile for various settings.

• Die-cast aluminum housing
• Static pressure rating: ANSI Class 250
• Pneumatic actuator with a 1/8 inch NPT barbed fitting

Product Highlights

The VG7441ST3003B globe valve features a robust construction with a bronze body and stainless steel stem, ensuring durability and reliability over time.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7441ST+3003B

Technical Specifications

• Closeoff Pressure: 4 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 248 F (2 C to 120 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Service: Hot water, chilled water, 50/50 glycol solutions, and steam for HVAC systems
• Valve Body Static Pressure Rating: ANSI Class 250
