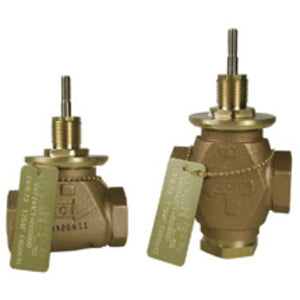

Johnson Controls VG7441PT+3003D Globe Valve Assembly 2 Way 1-1/4 in

Product Description

The Johnson Controls VG7441PT+3003D is a globe valve assembly designed for effective flow regulation in HVAC systems. This valve features a two-way design suitable for a variety of service applications.

• Constructed from durable bronze body material.
• Includes pneumatic actuator with barbed fitting for easy integration.
• Compatible with hot water, chilled water, and steam services.

Product Highlights

This valve manages pressure and enhances system performance for both commercial and residential HVAC applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7441PT+3003D

Technical Specifications

• Body Material: Bronze
• Pressure Rating: ANSI Class 250
• Closeoff Pressure: 14 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 248 F (2 C to 120 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, and Steam for HVAC Systems
• Static Pressure Rating: ANSI Class 250
