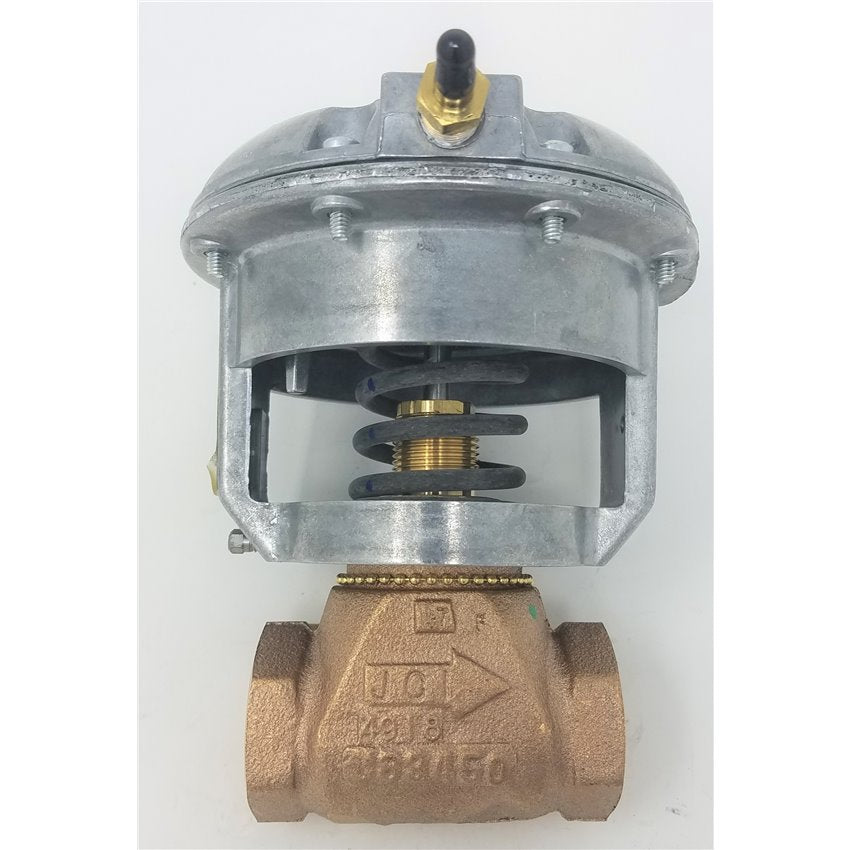

Johnson Controls VG7441CT+3003B Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7441CT+3003B is a globe valve assembly designed for HVAC systems. This two-way valve measures one-half inch and features a bronze body with a stainless steel stem. It is suitable for hot and chilled water, steam, and 50/50 glycol solutions.

• ANSI Class 250 factor valve body
• 0.73 Cv flow coefficient
• Compatible with pneumatic actuators

Product Highlights

This valve supports a spring range of three to six psi and includes a one-eighth inch NPT barbed fitting for polytubing. The enclosed design enhances durability and reliability.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7441CT+3003B

Technical Specifications

• Housing: Die-Cast Aluminum
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, and Steam
• Closeoff Pressure: 100 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 248 F (2 C to 120 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
