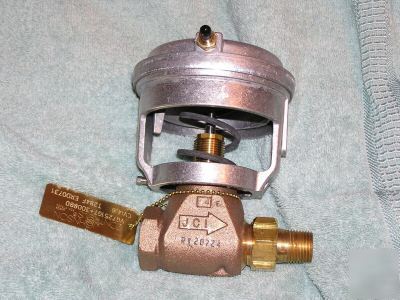

Johnson Controls VG7251GT+3003D Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7251GT+3003D is a globe valve assembly designed for HVAC systems. It features a two-way configuration and fits pipes of one half inch in diameter.

• Valve body static pressure rating: ANSI Class 250
• Operating conditions range from thirty-five degrees Fahrenheit to two hundred forty-eight degrees Fahrenheit
• Pneumatic actuator compatible with polytubing

Product Highlights

This valve is suitable for hot water, chilled water, and steam applications. It provides reliable performance and is built to withstand diverse HVAC conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7251GT+3003D
• Min Order Quantity: 1

Technical Specifications

• Housing: Die-Cast Aluminum
• Service: Hot water, chilled water, 50/50 glycol solutions, and steam for HVAC systems
• Closeoff Pressure: 192 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: 35 F to 248 F (2 C to 120 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
