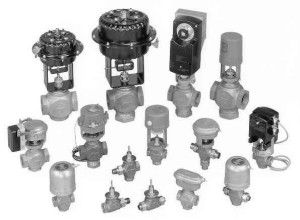

Johnson Controls VG7243ST+823E01 Globe Valve Assembly, 2 Way 2 in.

Product Description

The Johnson Controls VG7243ST+823E01 is a two-way globe valve assembly designed for HVAC systems. It features a bronze body and stainless steel stem along with a pneumatic actuator. This valve is suitable for various applications, including hot water and chilled water services.

• Industry-grade, drawn-steel actuator
• Corrosion-resistant, electro-painted finish
• Spring-loaded PTFE and elastomer V-rings

Product Highlights

This valve assembly can handle static pressure ratings of ANSI Class 250 and operates effectively in a temperature range from thirty-five degrees Fahrenheit to three hundred thirty-eight degrees Fahrenheit.

Product Information

Standard Information

• Part Number: VG7243ST+823E01
• Brand: Johnson Controls
• Activation Type: Pneumatic

Technical Specifications

• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, and 38 psig Saturated Steam
• Close-off Pressure: 52 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 338 F (2 C to 170 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Housing: Die-formed Carbon Steel
