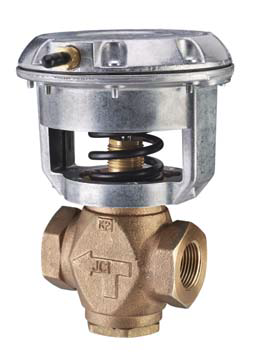

Johnson Controls VG7243LT+3003E Globe Valve Assembly 2 Way 3/4 in.

Product Description

The Johnson Controls VG7243LT+3003E is a globe valve assembly designed for efficient control of fluid flow in HVAC systems. This 2-way valve features a three-quarter inch connection size, making it suitable for a variety of applications. Its effective diaphragm area is eight square inches, allowing for optimal performance in regulating hot and chilled water, as well as glycol solutions and steam.

• Effective diaphragm area of eight square inches
• Includes a pneumatic actuator for precise control
• Supports various operating conditions, from thirty-five degrees Fahrenheit to three hundred thirty-eight degrees Fahrenheit

Product Highlights

The VG7243LT+3003E is engineered for durability and reliability in demanding environments.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7243LT+3003E

Technical Specifications

• Housing: Rugged die-cast enclosure
• Service: Compatible with hot water, chilled water, 50/50 glycol solutions, and steam
• Close-off Pressure: 108 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: 35 F to 338 F (2 C to 170 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Effective Diaphragm Area: 8 square inches
• Spring Range: 9 to 13 psig
