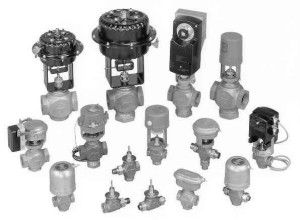

Johnson Controls VG7241ET+3003E Globe Valve Assembly, 2 Way 1/2 in.

Product Description

The Johnson Controls VG7241ET+3003E is a reliable globe valve assembly designed for use in HVAC systems. This 2-way valve measures one-half inch and supports various services, including hot water and chilled water applications.

• Rugged die-cast aluminum housing for durability.
• Pneumatic actuator with spring return for effective performance.
• Compatible with 50/50 glycol solutions and steam.

Product Highlights

This globe valve assembly is built to withstand a wide range of operating conditions and is suitable for HVAC installations.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7241ET+3003E

Technical Specifications

• Flow Characteristic: Equal Percentage
• Housing Material: Die Cast Aluminum Diaphragm, Synthetic Rubber
• Operating Conditions: 35 F To 248 F (2 C To 120 C)
• Operating Conditions (Actuator): -20 F To 150 F (-29 C To 66 C)
• Service Compatibility: Hot Water, Chilled Water, 50/50 Glycol Solutions, Steam
• Cv Value: 1.8
• Actuator Type: Pneumatic with Spring Return
• Barbed Fitting Size: 1/8 in. NPT for 1/4 in. or 5/32 in. O.D. Polytubing
