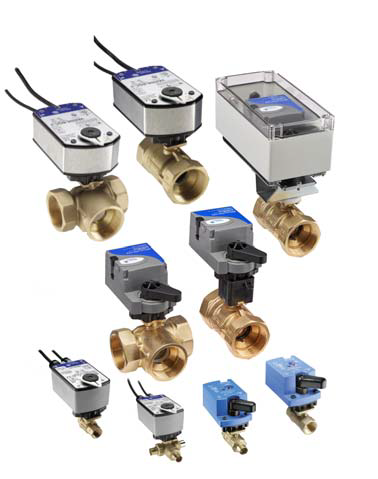

Johnson Controls VG1845DR+938GGC Ball Valve Assembly 3 Way 1-1/4 in

Product Description

The Johnson Controls VG1845DR+938GGC is a three-way ball valve assembly designed for HVAC applications. This valve features a forged brass body and a stainless steel ball, ensuring durability and reliability. It operates with a voltage of twenty-four VAC and utilizes a proportional control signal of zero to ten VDC, making it effective for various heating and cooling systems.

• NPT connection with a flow coefficient of 29.2 Cv
• Spring return actuator with a holding torque of one hundred seventy-seven pound-inches
• Blow-out proof stem for enhanced safety

Product Highlights

This ball valve is specifically designed for controlling fluid flow in HVAC systems. It is suitable for both hot water and chilled water applications, as well as fifty-fifty glycol solutions.

Product Information

Standard Information

• Brand: Johnson Controls
• Product Name: Ball Valve Assembly, 3 Way, 1-1/4 in

Technical Specifications

• Service: Hot Water, Chilled Water, 50/50 Glycol Solution For HVAC Systems
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage On The In-Line Port A (Coil) And Linear Of The Angle Port B (Bypass)
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
• Auxiliary Switch: 2 x SPDT
• Housing: NEMA 2, IP54
