Johnson Controls VG1841BN+9T4AGA Valve HVAC Hydronics Actuator Replacement

Product Description

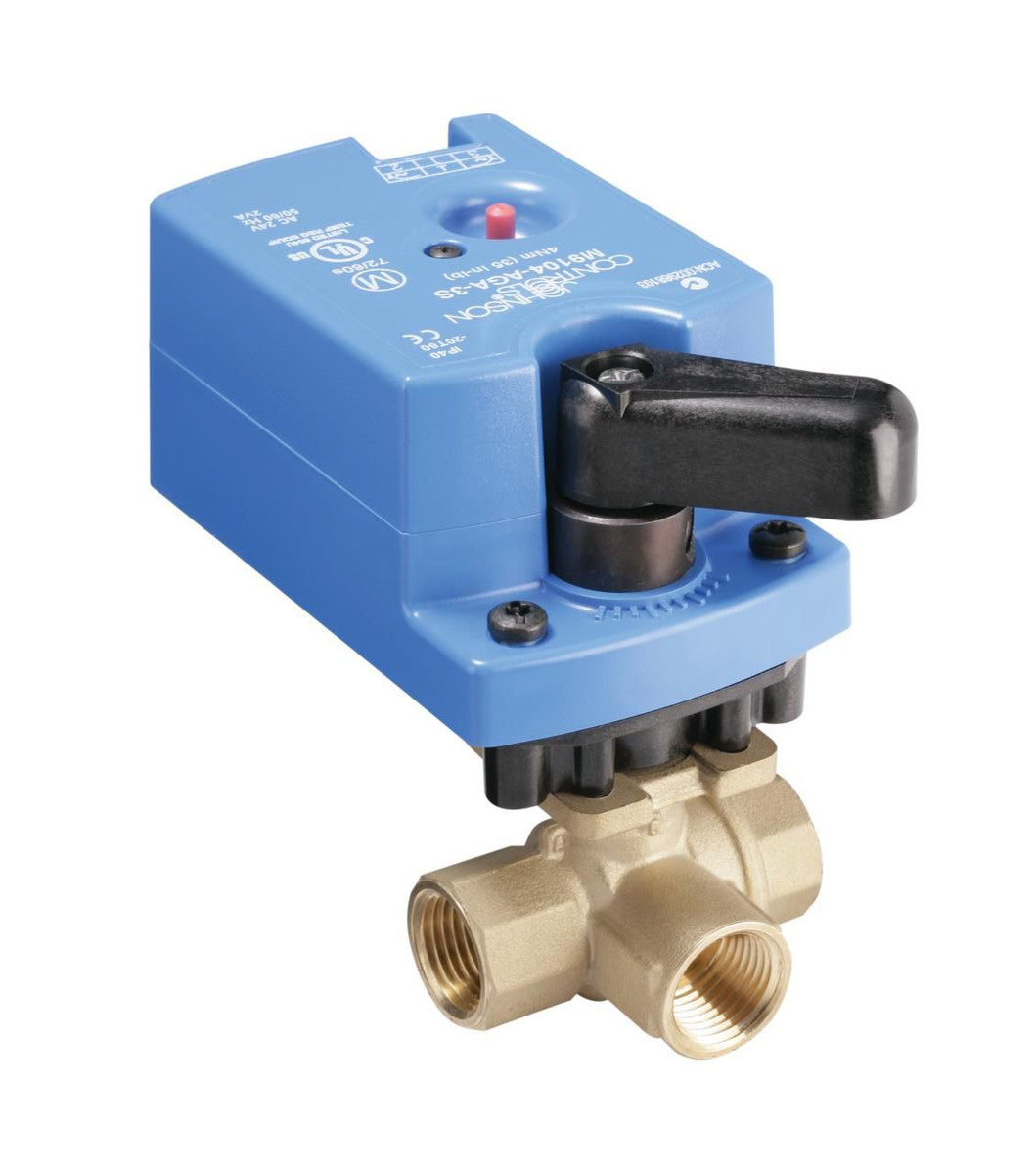

The Johnson Controls model VG1841BN+9T4AGA is a three-way ball valve with a VA9104-AGA-3S Non-Spring-Return Electric Actuator, designed for controlling the flow in HVAC systems. This valve is well-suited for handling both hot and chilled water, and certain models are capable of managing low-pressure steam. With a size ranging from 1/2 inch to 2 inches, it conforms to the needs of various installations.

• Optimized for HVAC applications, ensuring efficient flow control.
• Compatible with a range of Johnson Controls actuators for versatile application.
• Constructed from forged brass, offering a strong, leak-resistant assembly.

Product Highlights

This model, part of the VG1000 Series, can be mounted with actuators for on/off, floating, or proportional control, making it flexible for multiple system setups.

Technical Specifications

• Body Material: Forged Brass
• Pressure Rating: 580 psig static pressure
• Connection Type: NPT End Connections
• Control Type: Non-spring return electric actuator
• Size Range: 1/2 inch to 2 inches
