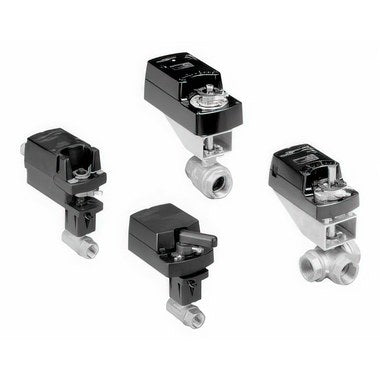

Johnson Controls VG1245FS Stainless Steel NPT Threaded End Connection Two-Way Ball Valves 46.8 Cv 2 Inch

Product Description

The Johnson Controls VG1245FS is a robust two-way ball valve designed for regulating the flow in HVAC systems. This valve, appropriate for both hot and chilled water applications, features a stainless steel trim and a NPT threaded end connection, ensuring reliable performance under varying temperatures.

• Equipped with Graphite-Reinforced Polytetrafluoroethylene (PTFE) seats ensuring leak-free operation and enhanced durability.
• Can handle up to 200 psi for tight shutoff and secure system integrity.
• Designed with Ethylene Propylene Diene Monomer (EPDM) double o-ring steam seals to significantly increase lifecycle, tested over 200,000 cycles.

Product Highlights

The Johnson Controls VG1245FS valve is engineered for precision and durability, offering streamlined installation and maintenance. Its high capacity of 46.8 Cv enables efficient flow control, ideal for a wide range of industrial, commercial, and institutional HVAC applications.

Product Information

Standard Information

• Manufacturer: Johnson Controls Inc
• Brand: Johnson Controls
• Series: VG1000

Technical Specifications

• Size: 2 inches
• Material: Stainless Steel
• Connection Type: NPT Threaded
• Flow Capacity (Cv): 46.8
• Pressure Rating: 200 psi
• Temperature Range: -22 to 212 degrees Fahrenheit
