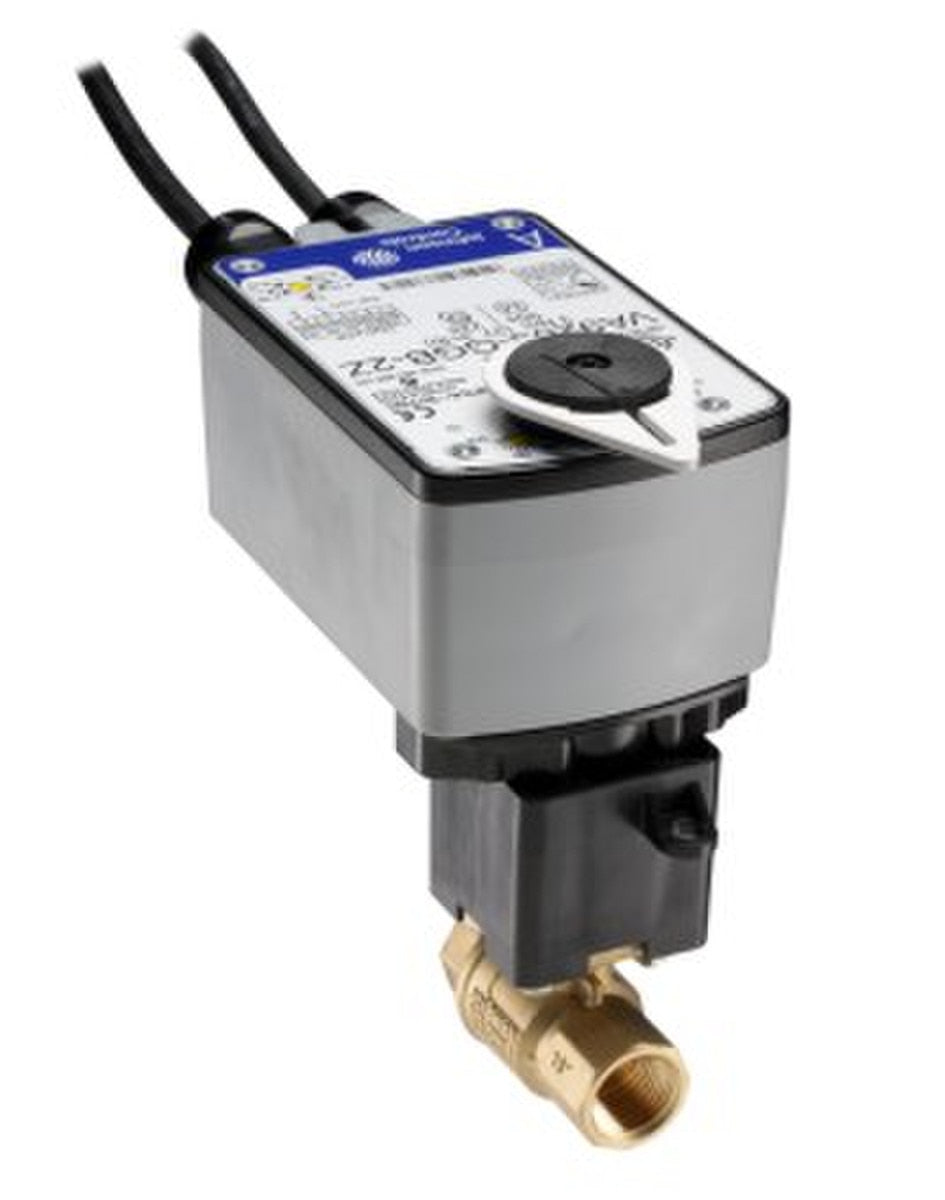

Johnson Controls VG1245CLH943AGB Ball Valve Assembly, 2 Way, 1 in.

Product Description

The Johnson Controls VG1245CLH943AGB is a two-way ball valve assembly designed for efficient flow control in HVAC systems. This product features a one-inch size and operates on twenty-four volts. It is equipped with a maintenance-free design that ensures reliability and durability.

• Maintenance-free operation
• Suitable for hot water and chilled water systems
• Direct mount electric actuator included

Product Highlights

This valve assembly is built to withstand iron-oxide contaminated water while providing accurate control across all load conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245CLH943AGB

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution, and fifteen psig saturated steam
• Auxiliary Switch: 1 x SPDT
• Power Consumption: 5.1 VA running, 2.8 VA holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: -22 F to 140 F (-30 C to 60 C)
• Electrical Connections: 48 in. 18 AWG appliance cables with integral 3/8 in. FMC connectors
