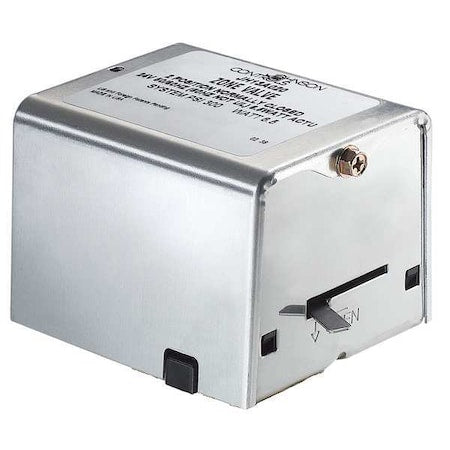

Johnson Controls JH13B020 Zone Valve Actuator 120V

Product Description

The Johnson Controls JH13B020 is a 120V zone valve actuator designed for reliable operation in HVAC systems. This high-performance actuator is ideally suited for Johnson Controls J Series valves and Erie VT Series valves, ensuring optimal functionality and efficiency.

• Max. water temperature support up to 200 degrees Fahrenheit.
• Normally closed actuator with a high closeoff pressure type.
• Equipped with a wire harness for easy and secure electrical connections.

Product Highlights

This actuator is UL listed, confirming its safety and quality standards. It features a simple on/off signal type and operates at a voltage of 120V for compatibility with standard systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: JH13B020

Technical Specifications

• Depth: 2 3/8 inches
• Width: 3 1/4 inches
• Height: 2 3/8 inches
• Voltage: 120
• Signal Type: On/Off
• Max. Water Temperature: 200 Degrees F
• Type of Actuator: Normally Closed
• Agency Compliance: UL listed, File E6688 or E27734 CNN XAPX (U.S.) XAPX7 (Canada), CE Mark
• Closeoff Pressure Type: High
• Electrical Connections: Wire Harness
