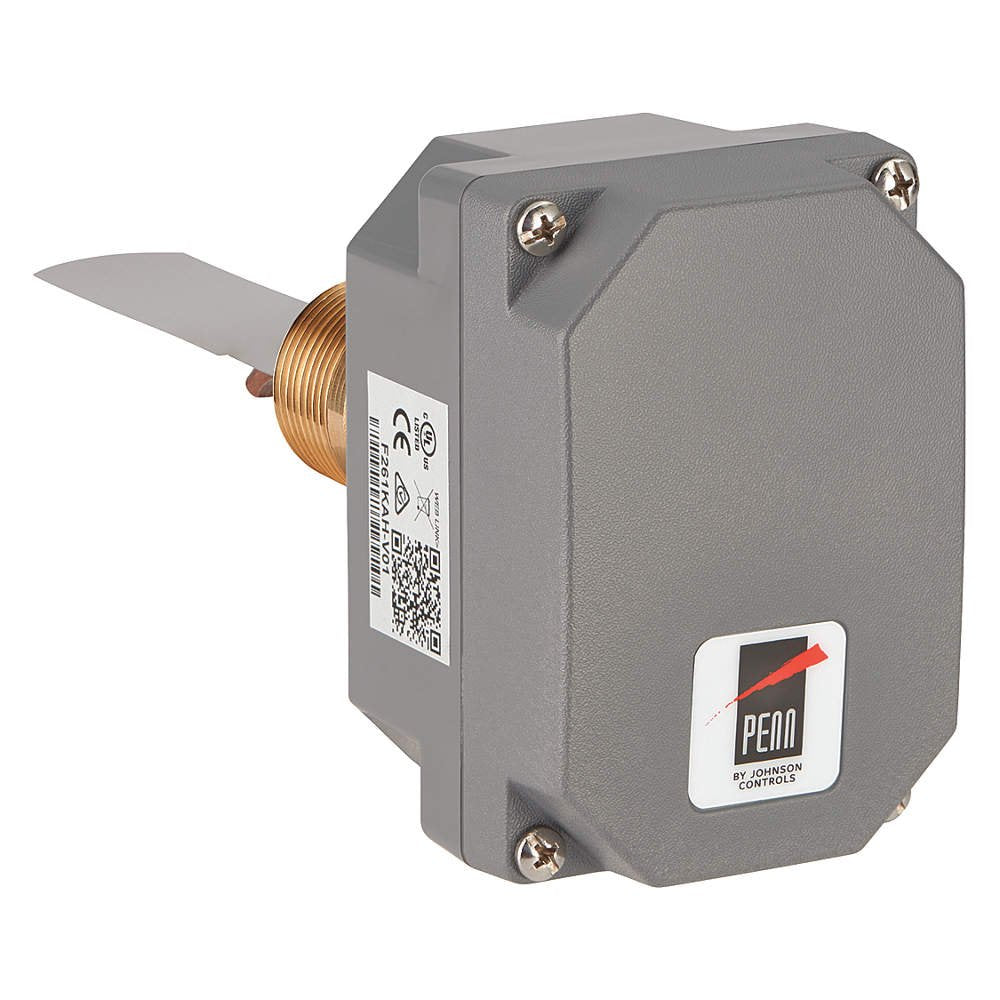

Johnson Controls F261MFH-V01C Penn F261 Series Low-Flow Model Flow Switch with Type 4 (NEMA) Enclosure, 3/4 x 3/4 External NPTF Inlet and Outlet

Product Description

The Johnson Controls F261MFH-V01C is a flow switch designed for low-flow applications. This model includes a Type 4 (NEMA) enclosure and features a three-quarter inch by three-quarter inch external NPTF inlet and outlet. It is suitable for use with nonhazardous fluids including water, ethylene glycol, and swimming pool water.

• Type 4 (NEMA) enclosure for indoor and outdoor use
• Compatible with chlorinated and treated water
• Low-flow operation activates the switch at less than one GPM for water

Product Highlights

This product is built for reliability and versatility across various applications in HVAC, plumbing, and industrial systems.

Product Information

Standard Information

• Manufacturer: Johnson Controls Inc
• Model Number: F261MFH-V01C

Technical Specifications

• Flow Rate: 0.6 to 17 GPM
• Operating Principle: Paddle actuated
• Media Temperature Range: 50°F to 250°F
• Pressure Range: 0 to 290 psi
• Material: Viton wet materials
• Max Fluid Pressure: 290 psi
• Switch Type: SPDT
• Connection Type: 3/4 FNPT
