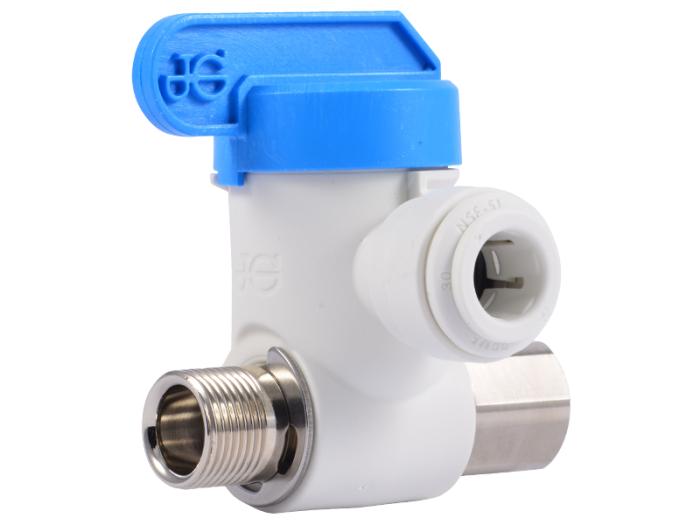

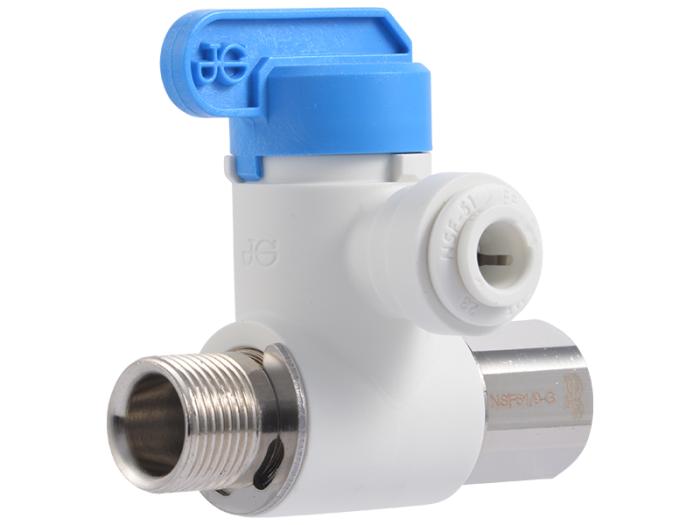

John Guest ASVPP1 Angle Stop Adapter Valve

Product Description

The John Guest ASVPP1 angle stop adapter valve is designed for adding a water feed supply from an existing chrome supply stop valve. Install this valve between the chrome supply stop and riser for a reliable water supply line. It is ideal for use with water filtration systems, reverse osmosis (RO) systems, coffee machines, and ice makers.

• JG push-fit technology ensures quick and easy installation.
• Compatible with plastic or copper outer diameter sized tubing.
• Features a quarter turn operation for easy opening and closing.

Product Highlights

This valve is constructed from white polypropylene with food-grade EPDM seals and featured plated lead-free brass threads.

Product Information

Standard Information

• Manufacturer: John Guest
• Manufacturer #: ASVPP1

Technical Specifications

• Tube OD: 1/4 in.
• Thread: 3/8 in. Female Compression
• Common Applications: For cold water supply use only, not suitable for compressed air applications
• Approvals & Listings: NSF51, NSF61
