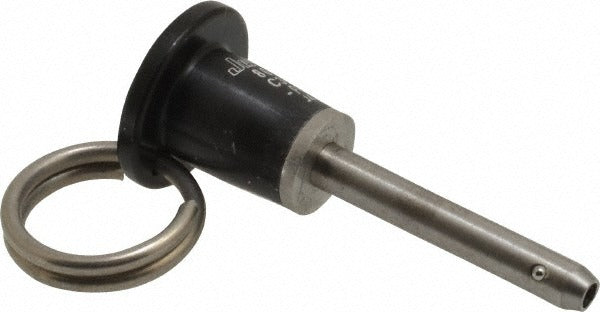

Jergens 800602 Quick-release Pin 3/16 in Button Handle

Product Description

The JERGENS 800602 is a push-button quick-release pin with a button handle, designed for fast, tool-free pin insertion and removal in industrial, military, and aerospace applications. The pin body is 17-4 stainless steel with a passivated finish for corrosion resistance. The 440C stainless steel locking balls are hardened to Rockwell C40, providing reliable retention under load. With a 3/16-inch pin diameter and 1-inch usable length, this pin suits compact connection points where a secure but quickly removable fastener is required. Breaking strength is rated at 5,150 pounds in double shear, making it suitable for load-bearing linkage and assembly applications. Licensed trades, maintenance technicians, and assembly professionals use this pin in fixtures, jigs, and structural connections.

This pin is appropriate for use in industrial machinery, military equipment, aerospace assemblies, and maintenance fixtures where repeatable, hand-operated pin removal is needed without tools. The button handle allows single-hand operation: press the button to retract the locking balls, insert or remove the pin, then release. The 2-1/8-inch overall length accommodates panel thicknesses up to the 1-inch usable length. Applications span fabrication shops, field maintenance, and OEM assembly lines where quick disassembly is a routine requirement.

Key Features

• 17-4 stainless steel pin body with passivated finish for corrosion resistance
• 440C stainless steel locking balls hardened to Rockwell C40
• 5,150-pound double-shear breaking strength for load-bearing connections
• Tool-free button-press release mechanism for rapid single-hand operation
• Aluminum button handle reduces overall weight
• Meets multiple military and aerospace fastener standards

Compatibility

Designed as a standard push-button quick-release pin for applications requiring a 3/16-inch diameter pin with 1-inch usable length. Complies with AMS-QQ-P-35, MIL-A-8625, MIL-C-5541, MIL-H-6875, and QQ-P-416 fastener standards, making it suitable for military and aerospace specification work.

Installation Notes

Installation does not require tools. Ensure the receiving hole diameter is matched to the 3/16-inch pin diameter for proper ball engagement and retention. Verify that the material stack thickness falls within the 1-inch usable length before installation. Inspect the locking balls and spring mechanism for proper function before placing the pin into service in load-bearing applications.
