Jcm 110-0132-3 Model #110 Patch Clamp 1 x 3 in.

Product Description

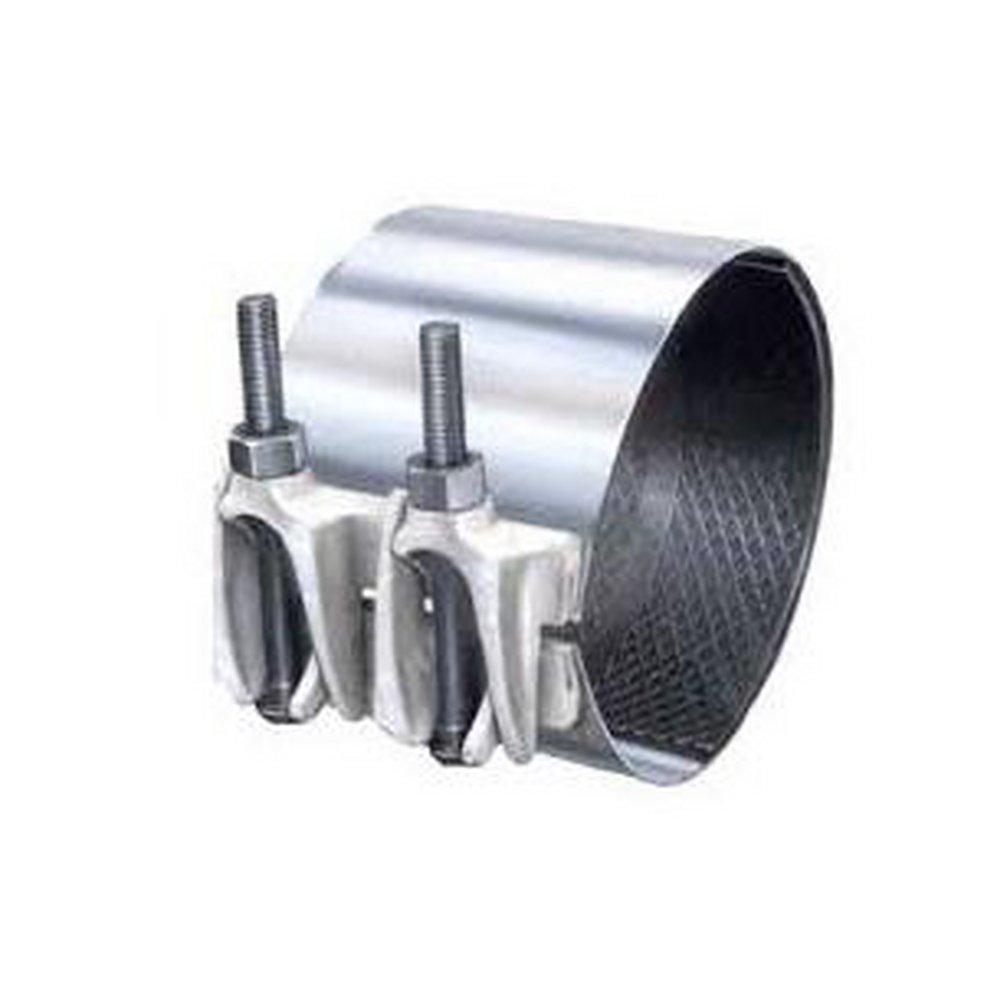

The JCM 110-0132-3 is a Model #110 patch clamp designed for repairing pinholes, punctures, or splits in steel and PVC pipes. Constructed from stainless steel and ductile iron, this clamp meets ANSI/NSF 61 standards. It features electrogalvanized steel bolts and a gridded gasket, ensuring a secure and lasting repair.

• Features certifiable prime 304 stainless steel band
• Equipped with low profile ductile iron lugs per ASTM A536
• ANSI/NSF 61 certified

Product Highlights

Durable stainless steel patch clamp for fast, economical, and permanent pipe repairs.

Product Information

Standard Information

• Brand: JCM
• Manufacturer Part Number: 110-0132-3

Technical Specifications

• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM A-536, ASTM D-2000
• Application: PVC Pipe, Steel Pipe
• Coating: Electrogalvanized
• Collection: Model #110
• Fits Pipe Size: 1 in
• Length: 3 in
• Material: Ductile Iron, Rubber, Stainless Steel, Steel
• Material Type: 304, Buna-N
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Product Type: Repair Clamp
• Range (in): 1.32 in
• UL Listed: No
• Bolt Size: 3/8 in
• Connection Size: 1 in
• Item Name: Patch Clamp
• Series: 110
• Temperature Rating: -40 to 180 deg F
• Width: 3 in
• Outside Diameter: 1.32 in
