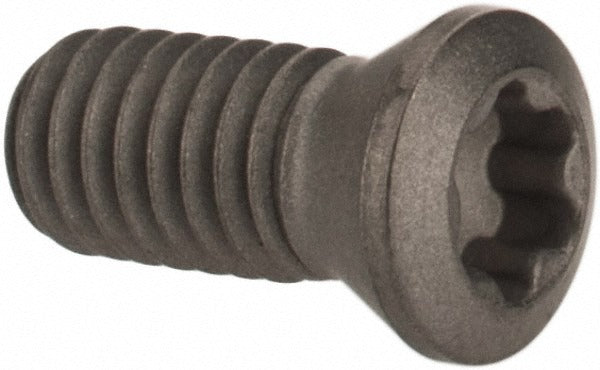

Iscar 7005382 Cap Screw Indexables TP9 Torx Plus M3

Product Description

The ISCAR 7005382 is a countersunk-head cap screw designed to secure indexable inserts in compatible toolholders. It uses a Torx Plus TP9 drive, requiring an IP-9/151 key driver for proper installation and removal. The M3 thread fits the DR-MF toolholder style and is engineered to the dimensional standards of ISCAR Multifunction Tools series holders. At 7.00 mm overall length and a package weight of 0.011 pounds, this is a precision hardware component for metalcutting applications. Replacement screws are a routine consumable in any shop running indexable tooling, and having the correct drive type and thread spec on hand prevents downtime during insert changes.

This cap screw is suited for use in boring bar, drilling, external turning, and facing operations where DR-MF style toolholders are in service. It is confirmed compatible with the XCMT 080304-MF insert. Shops running ISCAR Multifunction Tools series holders will encounter this screw as the standard fastener for locking indexable inserts at the seat. It is sold individually with a minimum order quantity of 10 units, making it practical to stock as a consumable alongside insert inventory.

Key Features

• Torx Plus TP9 drive reduces cam-out risk during high-torque insert clamping
• M3 countersunk-head thread matches DR-MF toolholder insert seat geometry
• 7.00 mm overall length engineered for flush seating in compatible holders
• Compatible with XCMT 080304-MF indexable insert (0.332 inch inscribed circle)
• Requires IP-9/151 key driver for proper engagement
• Part of ISCAR Multifunction Tools series hardware family

Compatibility

Confirmed compatible with DR-MF toolholder style and XCMT 080304-MF indexable insert. Intended for use across boring bar, drilling, external turning, and facing applications within the ISCAR Multifunction Tools series. Requires IP-9/151 key driver.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Before changing inserts or replacing the clamp screw, ensure the machine spindle is fully stopped and the tool is secured in a vise or toolholder block. Use only the specified IP-9/151 Torx Plus key driver — standard Torx drivers are not interchangeable with Torx Plus sockets and will damage the drive recess. Do not overtighten; follow the toolholder manufacturer torque guidelines printed in the holder documentation, as no torque value is specified in this product data.
