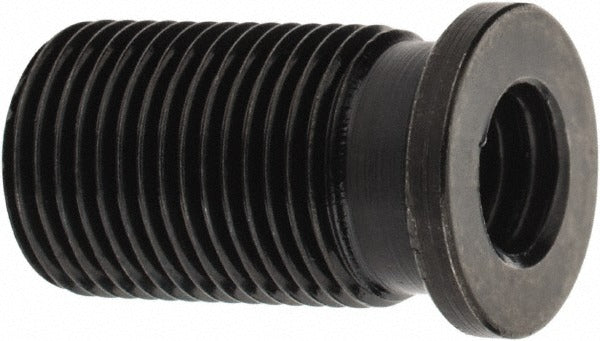

Iscar 7002103 Cap Screw Hex Socket M6 X 0.5 Indexable Turning

Product Description

The ISCAR 7002103 is a cylindrical-head cap screw designed for indexable toolholders used in turning applications. It features an M6 x 0.5 thread and a hex socket drive, requiring an HW 2.5 key driver for installation. This screw is purpose-built for securing exchangeable cutting heads in the ExchangeableHeads and Isoturn series toolholders. It is compatible with the HSK A63WH toolholder style. The package quantity is 1 screw, with a minimum order quantity of 5 units. Machinists and tool crib personnel working with ISCAR indexable turning systems will use this fastener as a direct replacement or spare when maintaining toolholder assemblies.

This cap screw is intended for use in CNC turning centers and manual lathes equipped with ISCAR ExchangeableHeads or Isoturn series toolholders. The M6 x 0.5 fine-thread pitch provides secure clamping of exchangeable cutting heads. It is suited for production environments where quick head changes are required and fastener integrity is critical to dimensional accuracy and insert seating. The cylindrical head profile is designed to seat flush within the toolholder body to avoid interference with the workpiece or machine turret.

Key Features

• M6 x 0.5 thread size with cylindrical head profile for flush seating in toolholder body
• Hex socket drive requires HW 2.5 key driver for proper torque application
• Compatible with HSK A63WH toolholder style
• Designed for ISCAR ExchangeableHeads and Isoturn series turning systems
• Compatible with a wide range of VCGT and VCMT insert geometries listed below
• Sold as single unit with minimum order quantity of 5

Compatibility

Compatible with HSK A63WH toolholders in the ISCAR ExchangeableHeads and Isoturn series. Confirmed compatible inserts include: VCGT 110302-AS, VCGT 110304-AS, VCGT 160401-AS, VCGT 160402-AS, VCGT 160404-AS, VCGT 160404D, VCGT 160408D, VCMT 110302-SM, VCMT 110304-SM, VCMT 110308-SM, VCMT 160402-SM, VCMT 160404-14, VCMT 160404-SM, VCMT 160404T, VCMT 160408-14, VCMW 160404, VCMW 160.

Installation Notes

Installation should be performed by a qualified machinist or tool crib technician familiar with indexable toolholder maintenance. Power down and lock out the machine before servicing any toolholder assembly. Use only the specified HW 2.5 hex key driver to avoid rounding the socket drive. Do not substitute fasteners of a different thread pitch or head style, as improper clamping can cause insert movement and damage to the toolholder body.
