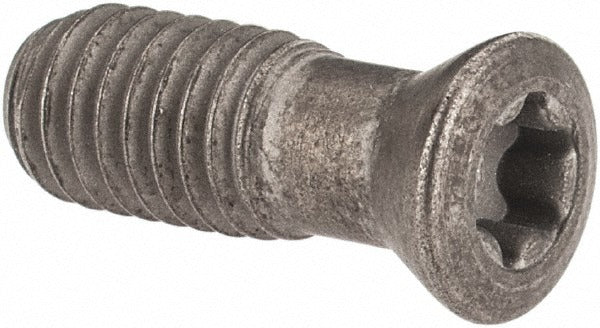

Iscar 7000219 Cap Screw T20 Torx M5 Thread Indexable

Product Description

The ISCAR 7000219 is a countersunk cap screw designed to secure indexable inserts in face mill and shell mill toolholders. It features an M5 thread size and a T20 Torx drive, providing reliable torque transfer without fastener slippage during clamping. The overall length is 13.50 millimeters. Belonging to the ISCAR 3M series, this screw is a direct-fit hardware component used by machinists and toolroom technicians to maintain insert positioning under cutting loads. Proper insert retention directly affects surface finish and dimensional accuracy, making fastener condition and correct torque critical at every insert change.

This cap screw is used in milling applications with face mills and shell mills that accept AXKT 2006 series indexable inserts and F90AX-style toolholders. It is suited to production environments where frequent insert indexing demands a consistent, reliable clamping fastener. Keeping spare screws on hand prevents downtime during insert changes. The T20 Torx head resists cam-out under the tightening torques common in indexable toolholder service.

Key Features

• M5 thread size for positive engagement with indexable toolholder clamping bores
• T20 Torx drive type minimizes cam-out during tightening
• Countersunk head type seats flush within the insert pocket
• 13.50 millimeter overall length matched to AXKT 2006 insert geometry
• Part of the ISCAR 3M series for consistent hardware standardization across toolholders

Compatibility

Compatible with ISCAR F90AX-style toolholders and AXKT 2006 series indexable inserts used in face mill and shell mill applications.

Installation Notes

Installation is performed by machining technicians during scheduled insert indexing or replacement. Power down the spindle and engage all machine lockout procedures before accessing the toolholder. Use a calibrated T20 Torx driver or key and apply the torque value specified in the ISCAR toolholder documentation for M5 clamping screws. Inspect the screw threads and head seat for wear or damage at each insert change and replace the screw if deformation is observed.
