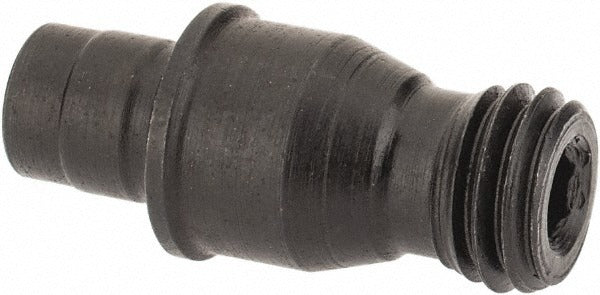

Iscar 7000092 Lock Pin Indexable Turning Tools

Product Description

The ISCAR 7000092 is a lock pin designed to secure indexable inserts in turning tool holders. It applies clamping force to keep the insert firmly seated during machining operations, preventing movement under cutting loads. This type of pin is a consumable component in indexable tooling systems and is replaced as part of routine toolholder maintenance. The industry standard number for this pin is NL46. Installation is straightforward and requires no special equipment beyond the appropriate torx or hex key used with the toolholder's clamping system.

This lock pin is used in metalworking and machining environments where indexable turning tools are employed on CNC lathes, manual lathes, and turning centers. It is installed by machinists and toolroom technicians as part of insert indexing or toolholder servicing. The pin is sold individually, making it practical for targeted replacement without purchasing a full toolholder kit.

Key Features

• Industry standard number NL46 for cross-reference with compatible toolholder systems
• Secures indexable inserts to prevent movement under cutting loads
• Sold as a single unit, suitable for targeted replacement
• Lightweight component at 0.05 pounds, consistent with precision toolholder hardware

Compatibility

Designed as a replacement lock pin for indexable turning toolholders requiring an NL46-standard clamping pin. Verify compatibility against your specific toolholder model and clamping system before ordering.

Installation Notes

Installation and replacement of lock pins in indexable toolholders should be performed by a qualified machinist or toolroom technician. Ensure the machine is powered down and the spindle is fully stopped before servicing any toolholder. Use the correct size key for the clamping screw to avoid damaging the pin or seat. Inspect the pin seat and clamping pocket for wear or debris before installing the replacement pin.
