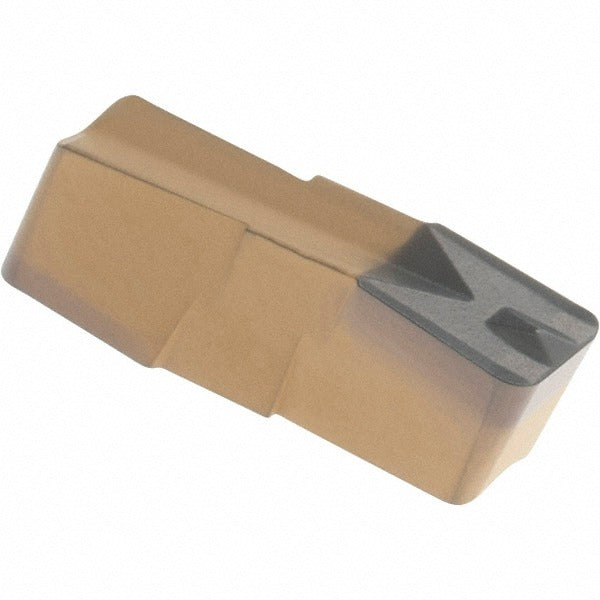

Iscar 6492384 Grooving Insert 4mm Cut-grip IC8250

Product Description

The ISCAR 6492384 is a solid carbide grooving insert designed for precision external grooving and parting operations on CNC turning centers and lathes. Part of the Cut-Grip series, it features a 4.00 mm cutting width and a maximum depth of cut of 2.40 mm, making it well suited for tight-tolerance groove profiles. The insert is coated with an Al2O3 finish applied via PVD process and carries a manufacturer grade of IC8250, which is engineered for wear resistance in demanding cutting conditions. Installation is performed by qualified machinists and toolroom technicians using a clamp-style holder.

This insert is intended for grooving stainless steel and steel workpieces in production turning environments, both light manufacturing and heavy-duty shop applications. The neutral hand orientation allows flexible positioning in compatible Cut-Grip toolholders. The double-ended design extends usable tool life by providing two cutting edges per insert. A positive rake angle of 7 degrees and an E-style chip breaker support controlled chip formation during interrupted and continuous grooving passes.

Key Features

• 4.00 mm cutting width with a maximum depth of cut of 2.40 mm
• Solid carbide construction with Al2O3 PVD coating and IC8250 grade for extended wear resistance
• Double-ended insert design provides two usable cutting edges per piece
• Positive 7-degree rake angle with E-style chip breaker for controlled chip evacuation
• Corner radius of 0.80 mm supports accurate groove-bottom geometry
• Clamp-style insert holding compatible with Cut-Grip series toolholders

Compatibility

Designed for use with ISCAR Cut-Grip series clamp-style toolholders that accept GIP-style inserts with size code 400E080. Primary workpiece materials are stainless steel (ISO code M) and steel (ISO code P). Conforms to ISO 13399 tooling data standards.

Installation Notes

Insert installation and replacement should be performed by a qualified machinist with the machine powered down and spindle locked. Use the appropriate torque-limiting clamp key specified by the toolholder manufacturer — do not overtighten or improvise with substitute tools. Inspect the insert seat and clamp for chips or debris before seating a new insert. Verify cutting parameters against workpiece material and toolholder manufacturer recommendations before resuming operation.
