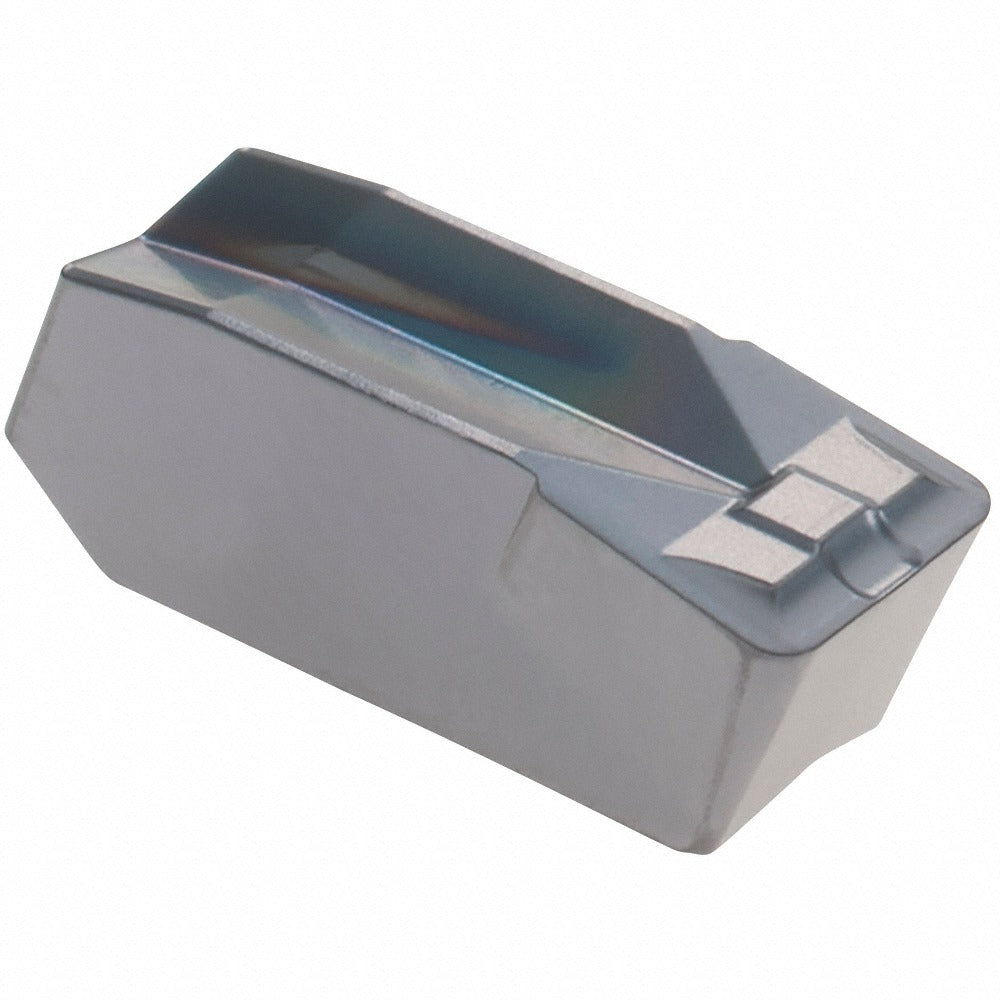

Iscar 6491257 GIMN608N IC907 Grooving Insert 6mm

Product Description

The ISCAR 6491257 is a solid carbide grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. Carrying the GIMN608N insert style designation and manufactured in the IC907 grade, this insert features a PVD-applied TiAlN and TiN coating for extended wear resistance across a broad range of workpiece materials. The 6 mm cutting width and a maximum depth of cut of 2.40 mm make it well suited for defined-width groove profiles. The positive rake geometry at 7 degrees reduces cutting forces and improves chip control during interrupted or continuous grooving passes. It is installed and serviced by machinists and CNC lathe operators in production and job-shop environments.

This insert is part of the Cut-Grip series and is rated for universal primary workpiece material compatibility, covering ISO material groups H, K, M, N, P, and S. That range includes carbon and alloy steels, stainless steels, cast irons, non-ferrous metals, high-temperature alloys, and hardened materials. Typical applications include groove turning, face grooving, and parting on both light and medium-duty turning programs. The neutral hand orientation allows it to fit toolholders designed for straight-approach cutting without left or right offset.

Key Features

• IC907 submicron carbide grade with PVD TiAlN and TiN coating for thermal and wear resistance
• 6 mm cutting width with a 0.80 mm corner radius for consistent groove geometry
• Maximum depth of cut of 2.40 mm within an operating range of 2.00 to 3.00 mm
• Positive 7-degree rake angle reduces cutting forces and improves chip evacuation
• Neutral hand, single-end insert with clamp-style holding method
• Multi-use insert compatible with ISO 13399 tooling data standards

Compatibility

Designed for use in Cut-Grip series toolholders accepting GIMN-style inserts with a 608 size code. Compatible with ISO material groups H, K, M, N, P, and S as designated by the manufacturer.

Installation Notes

Insert installation and replacement should be performed by a qualified machinist with the machine powered down and the spindle locked. Use the appropriate torque wrench and clamping screw specified by the toolholder manufacturer to secure the insert without over-tightening. Inspect the insert seat and clamp for debris or damage before seating a new insert. Follow your facility safety procedures and machine manufacturer guidelines when handling carbide inserts, as edges are sharp.
